Vehicle Specification
This page describes the vehicle specifications provided by the MORAI Simulator and the details for each vehicle model.
Vehicle Model Naming Convention
The vehicle model names shown in the simulator are based on the following rules.
The Naming Convention for Manufacturer Vehicles
The naming convention for manufacturer vehicles provided in the MORAI SIM: Drive standard version is as follows:
{ProductionYear}{Manufacturer_Brand}{ModelName}
Example: 2019_Hyundai_genesis_g90

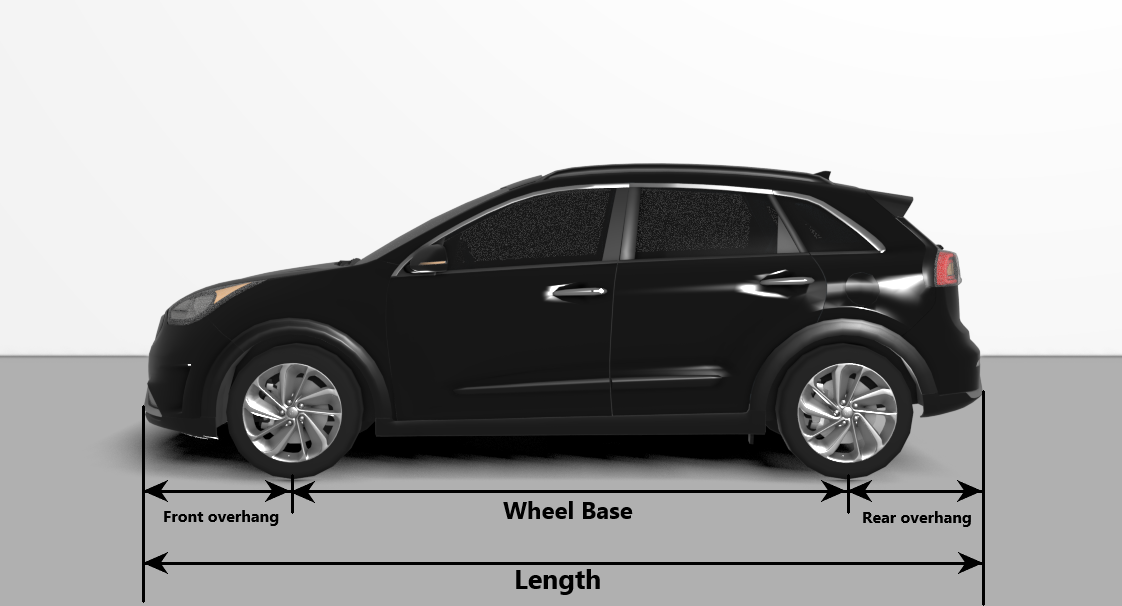

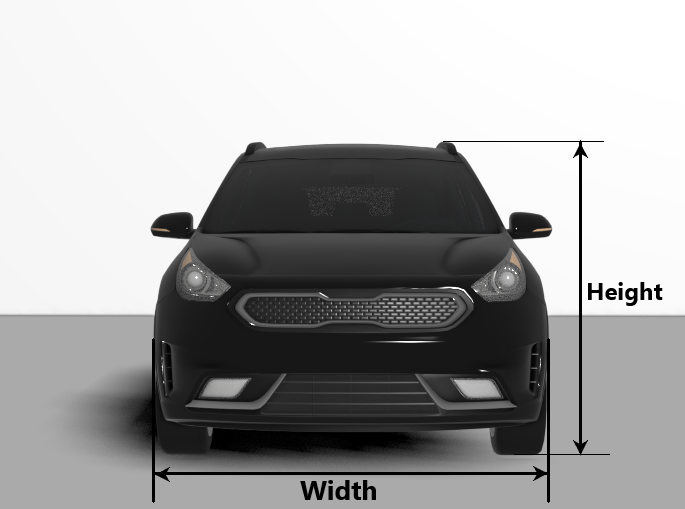

Define Chassis dimensions of vehicles in MORAI SIM

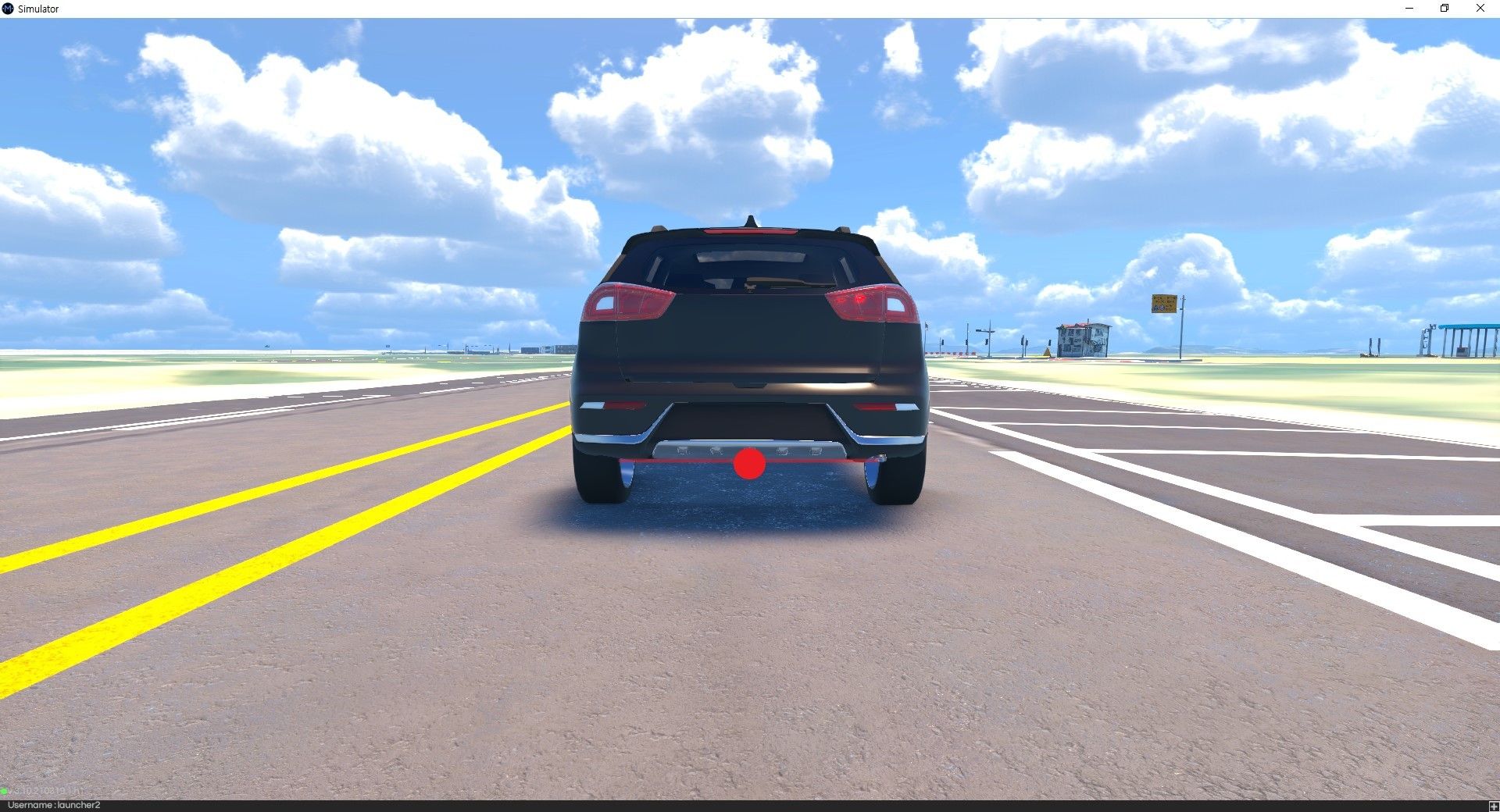

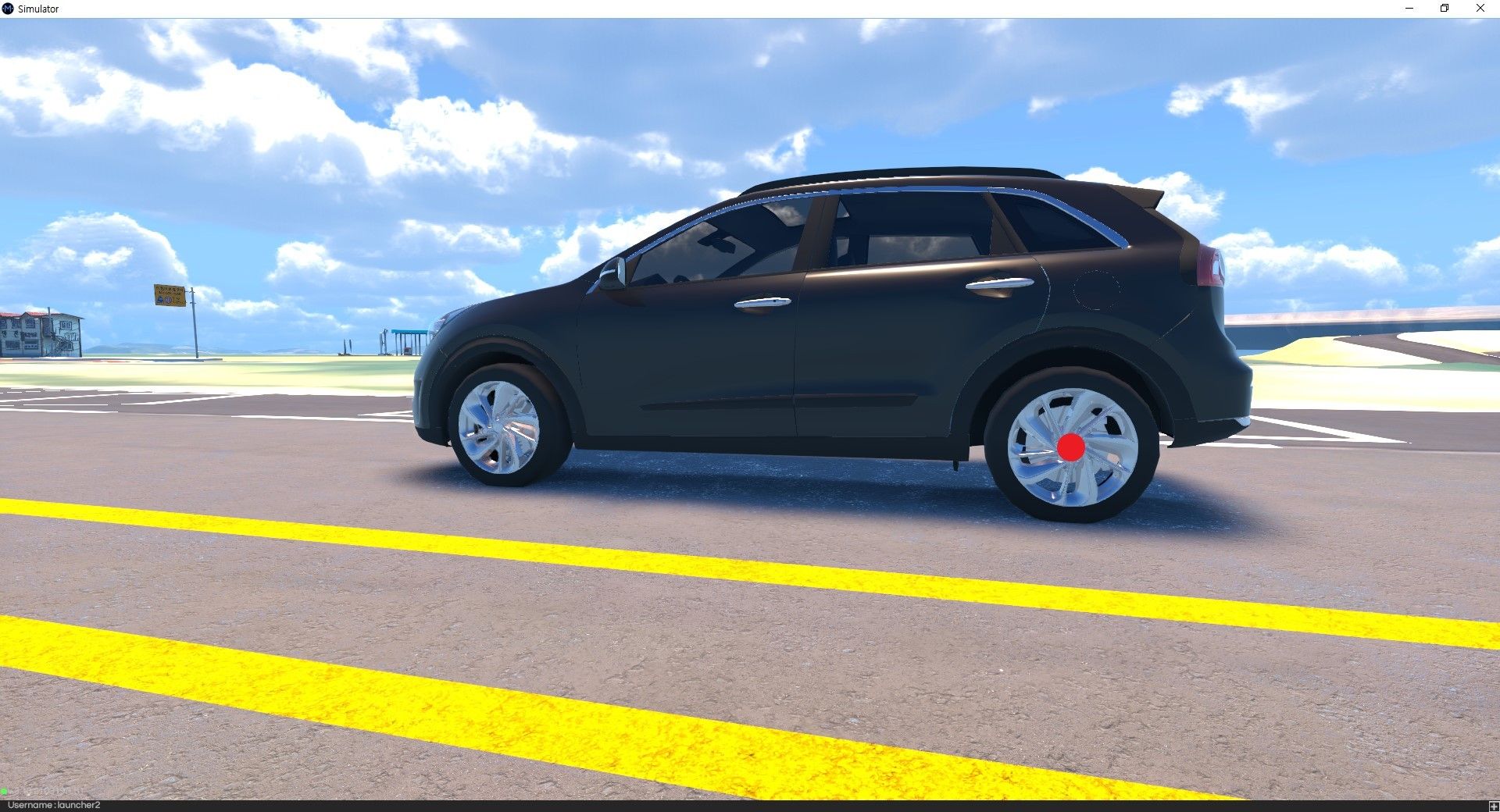

All physical dimensions are measured from the midpoint of the rear-wheel axis.
Ego-Vehicle Specifications

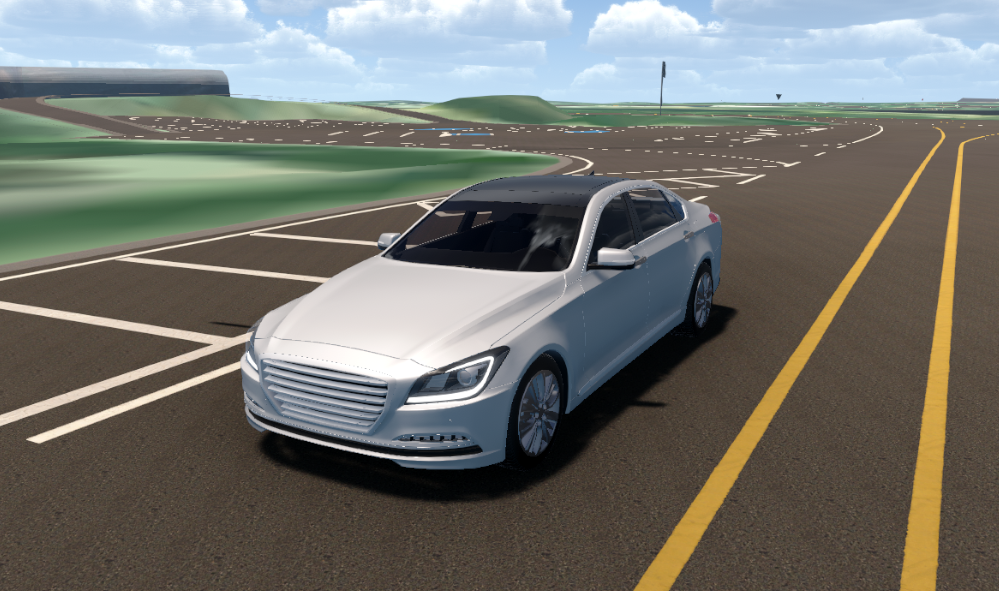

2016_Hyundai_Genesis_DH
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 9.12
Distance(m) : 197.9
Full Braking Test (100-0kph)
Time(sec) : 2.5
Distance(m) : 35.87
Steering
Minimum Turning Radius(m) : 6.45
Max Wheel Angle(deg) : 34
Exterior Dimensions
Length(m) : 4.996
Width(m) : 1.92
Height(m) : 1.487
Wheelbase(m) : 3.01
Front Overhang(m) : 0.846
Rear Overhang(m) : 1.14

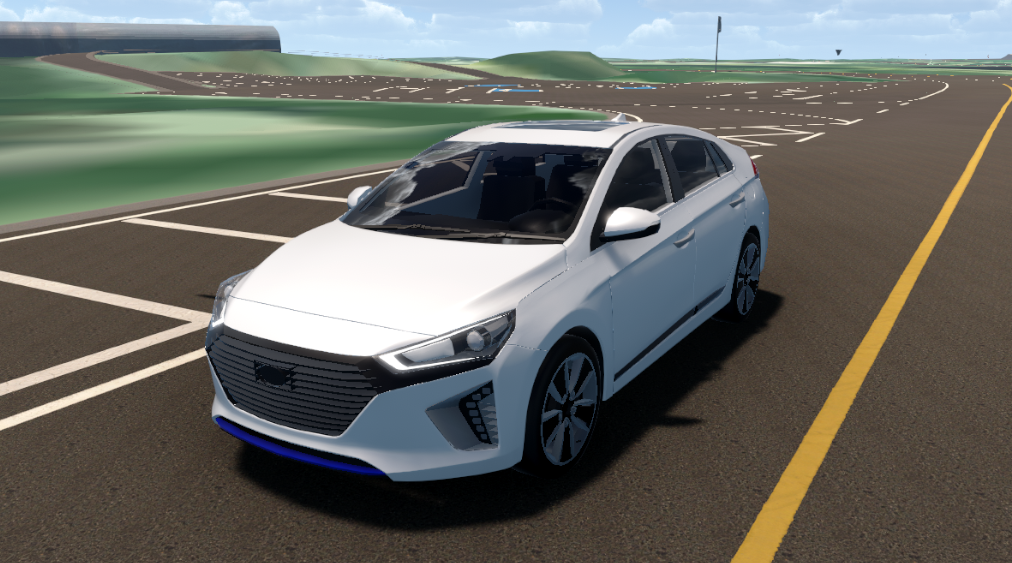

2016_Hyundai_Ioniq
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 9.38
Distance(m) : 195.9
Full Braking Test (100-0kph)
Time(sec) : 2.74
Distance(m) : 37.99
Steering
Minimum Turning Radius(m) : 5.57
Max Wheel Angle(deg) : 36.3
Exterior Dimensions
Length(m) : 4.47
Width(m) : 1.82
Height(m) : 1.45
Wheelbase(m) : 2.7
Front Overhang(m) : 1.88
Rear Overhang(m) : 0.89

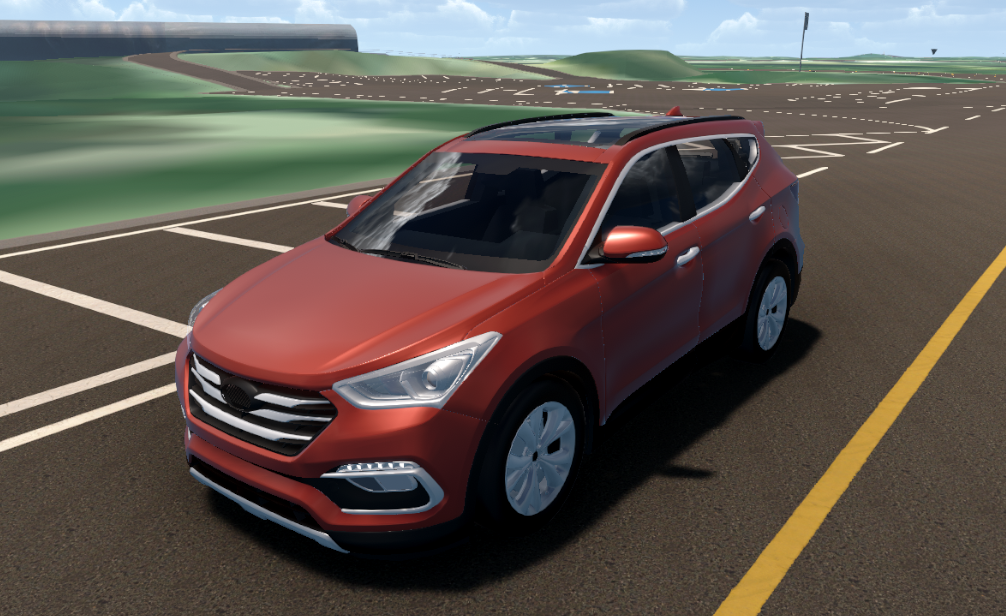

2016_Hyundai_Santafe
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 10.88
Distance(m) : 198.01
Full Braking Test (100-0kph)
Time(sec) : 2.84
Distance(m) : 40.45
Steering
Minimum Turning Radius(m) : 5.52
Max Wheel Angle(deg) : 33.4
Exterior Dimensions
Length(m) : 4.7
Width(m) : 1.88
Height(m) : 1.69
Wheelbase(m) : 2.7
Front Overhang(m) : 0.94
Rear Overhang(m) : 1.06

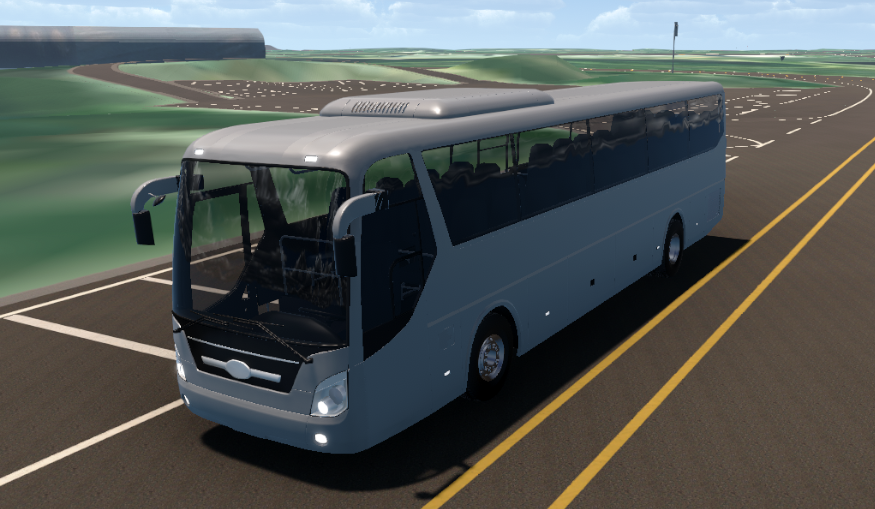

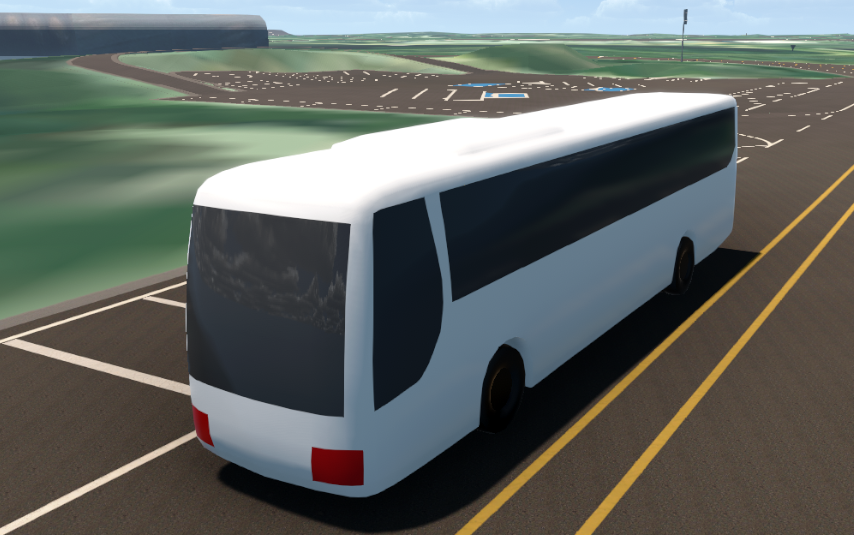

2016_Hyundai_Universe
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 20.6
Distance(m) : 147.17
Full Braking Test (100-0kph)
Time(sec) : 3.38
Distance(m) : 47.81
Steering
Minimum Turning Radius(m) : 10.56
Max Wheel Angle(deg) : 38.5
Exterior Dimensions
Length(m) : 12.03
Width(m) : 2.495
Height(m) : 3.49
Wheelbase(m) : 6.12
Front Overhang(m) : 2.67
Rear Overhang(m) : 3.24

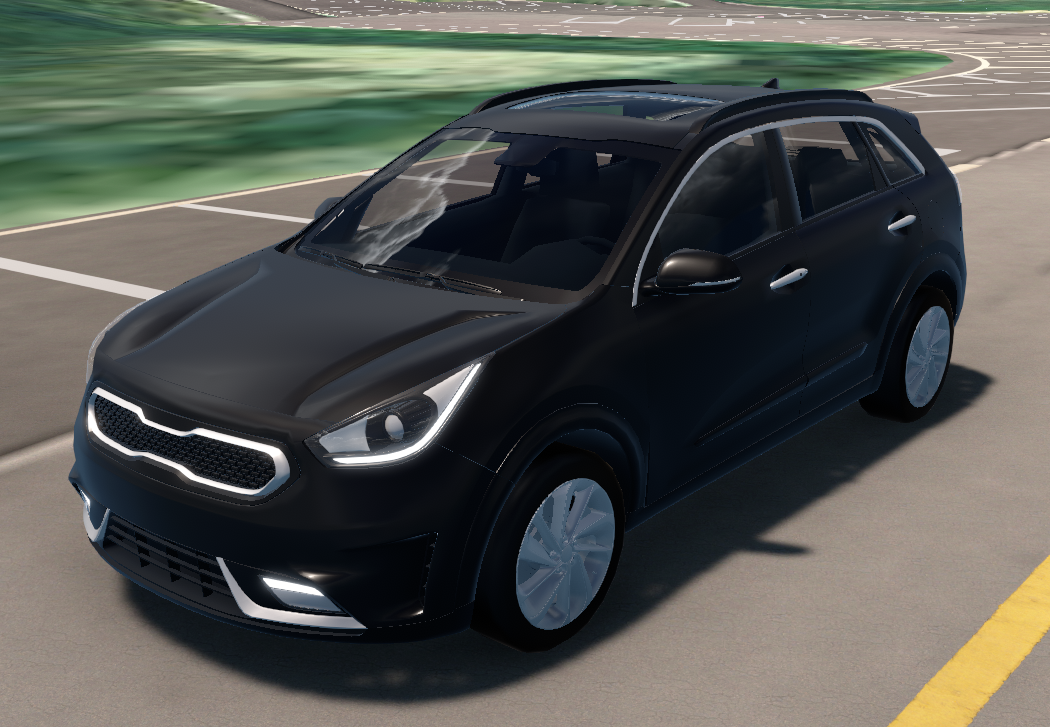

2017_Kia_Niro(HEV)
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 10.42
Distance(m) : 167.87
Full Braking Test (100-0kph)
Time(sec) : 2.52
Distance(m) : 35.2
Steering
Minimum Turning Radius(m) : 5.5
Max Wheel Angle(deg) : 36.3
Exterior Dimensions
Length(m) : 4.355
Width(m) : 1.805
Height(m) : 1.545
Wheelbase(m) : 2.7
Front Overhang(m) : 0.87
Rear Overhang(m) : 0.785

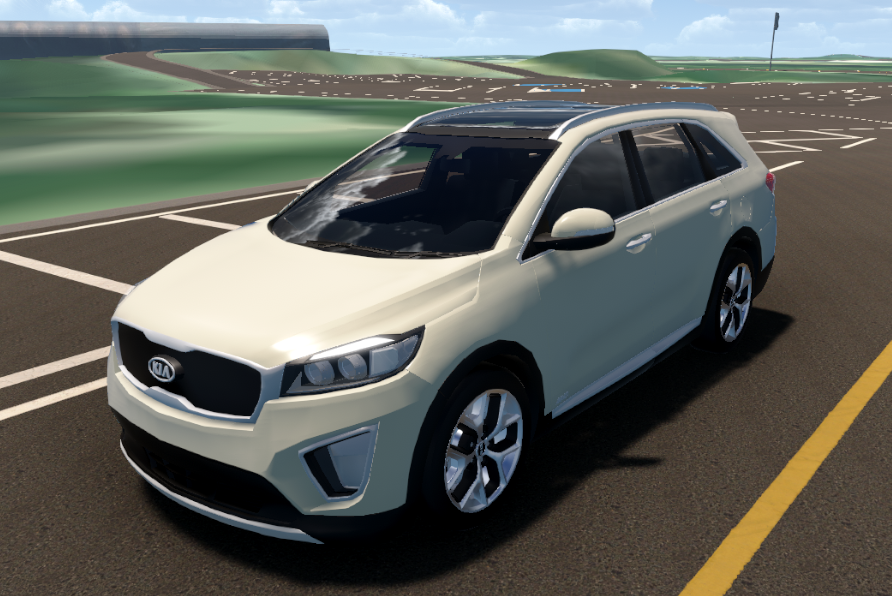

2017_Kia_Sorento
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 10.56
Distance(m) : 197.51
Full Braking Test (100-0kph)
Time(sec) : 2.84
Distance(m) : 40.01
Steering
Minimum Turning Radius(m) : 6.04
Max Wheel Angle(deg) : 31
Exterior Dimensions
Length(m) : 4.8
Width(m) : 1.89
Height(m) : 1.69
Wheelbase(m) : 2.78
Front Overhang(m) : 0.945
Rear Overhang(m) : 1.075

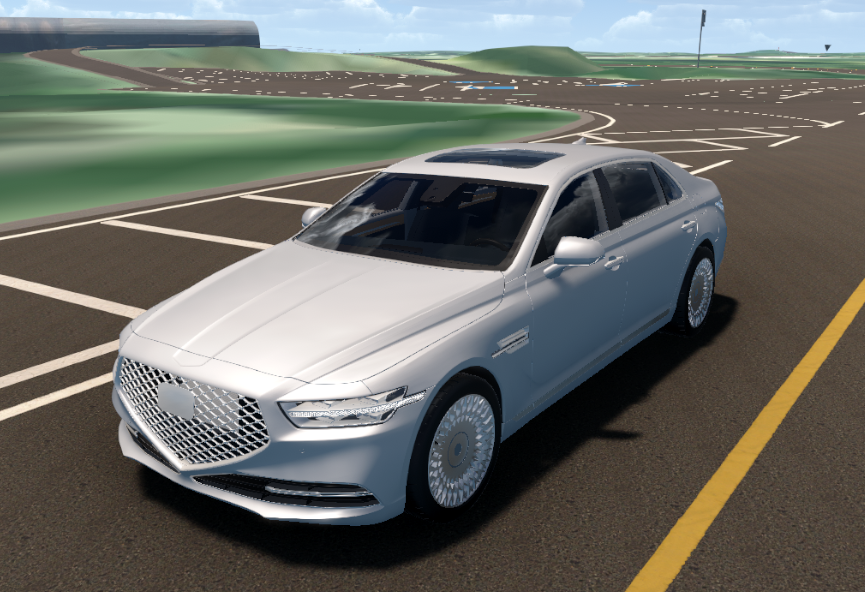

2019_Hyundai_genesis_g90
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 8.56
Distance(m) : 198.03
Full Braking Test (100-0kph)
Time(sec) : 2.66
Distance(m) : 36.26
Steering
Minimum Turning Radius(m) : 6.03
Max Wheel Angle(deg) : 35.8
Exterior Dimensions
Length(m) : 5.205
Width(m) : 1.915
Height(m) : 1.495
Wheelbase(m) : 3.16
Front Overhang(m) : 0.86
Rear Overhang(m) : 1.185

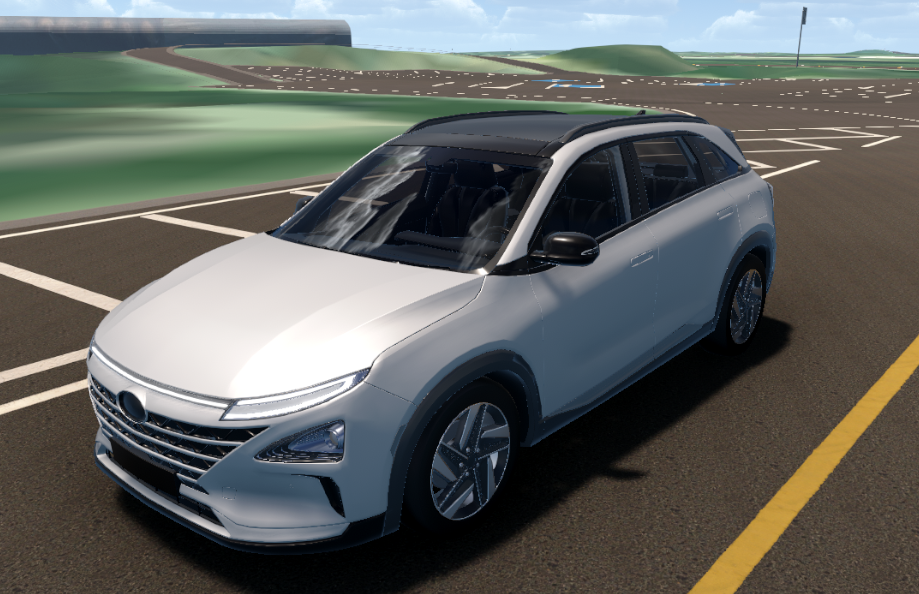

2019_Hyundai_Nexo
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 10.82
Distance(m) : 191.62
Full Braking Test (100-0kph)
Time(sec) : 2.64
Distance(m) : 37.59
Steering
Minimum Turning Radius(m) : 5.49
Max Wheel Angle(deg) : 34.7
Exterior Dimensions
Length(m) : 4.67
Width(m) : 1.86
Height(m) : 1.63
Wheelbase(m) : 2.79
Front Overhang(m) : 0.96
Rear Overhang(m) : 0.92

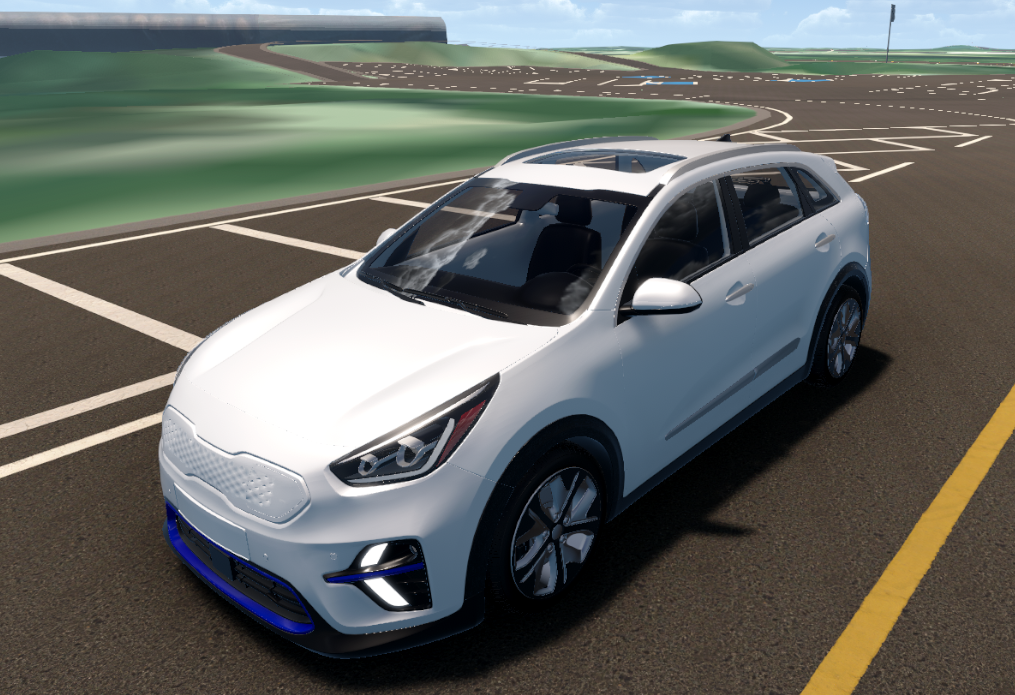

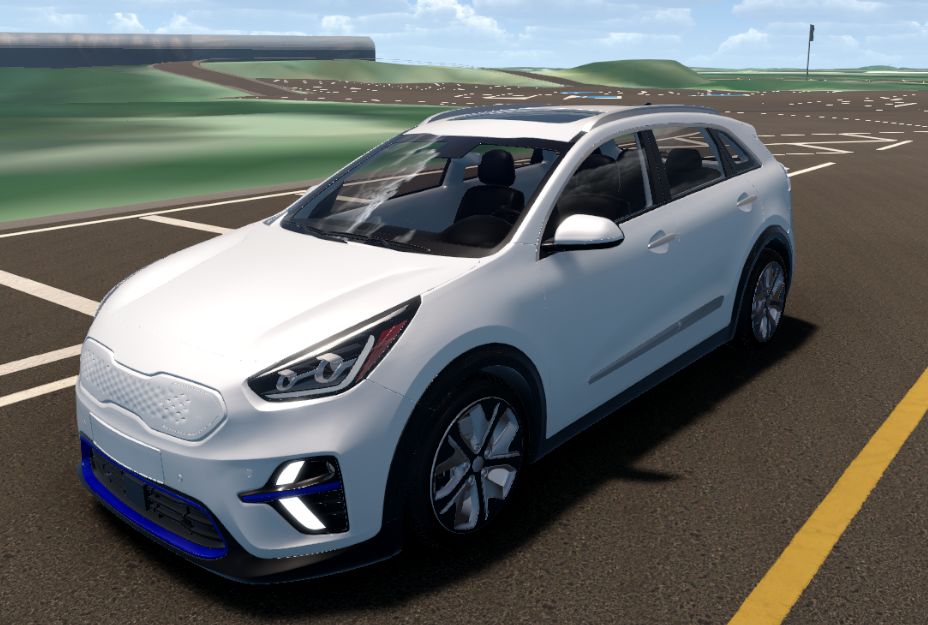

2020_Kia_Niro(EV)
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 8.04
Distance(m) : 166.69
Full Braking Test (100-0kph)
Time(sec) : 3.08
Distance(m) : 44.32
Steering
Minimum Turning Radius(m) : 5.5
Max Wheel Angle(deg) : 33.4
Exterior Dimensions
Length(m) : 4.375
Width(m) : 1.8
Height(m) : 1.545
Wheelbase(m) : 2.7
Front Overhang(m) : 0.885
Rear Overhang(m) : 0.79

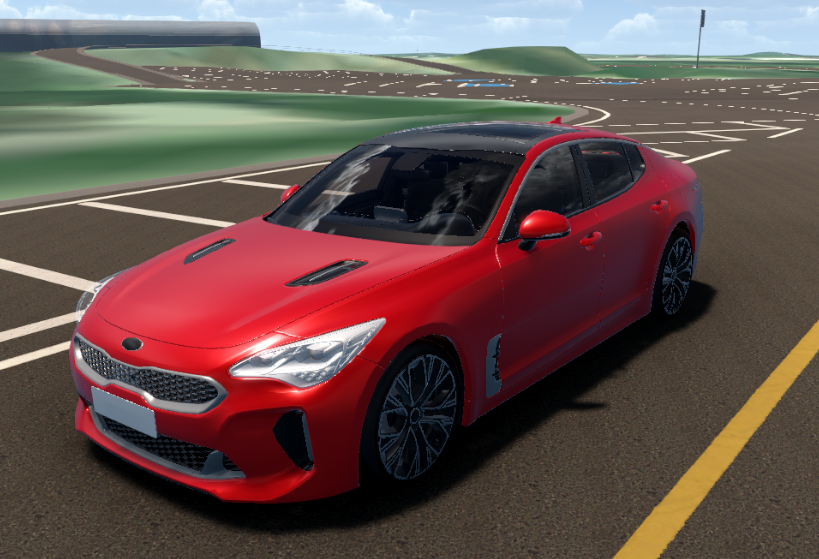

2020_Kia_Stinger
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 8.48
Distance(m) : 198.06
Full Braking Test (100-0kph)
Time(sec) : 2.6
Distance(m) : 36.17
Steering
Minimum Turning Radius(m) : 6.05
Max Wheel Angle(deg) : 32.5
Exterior Dimensions
Length(m) : 4.83
Width(m) : 1.87
Height(m) : 1.4
Wheelbase(m) : 2.905
Front Overhang(m) : 0.83
Rear Overhang(m) : 1.095

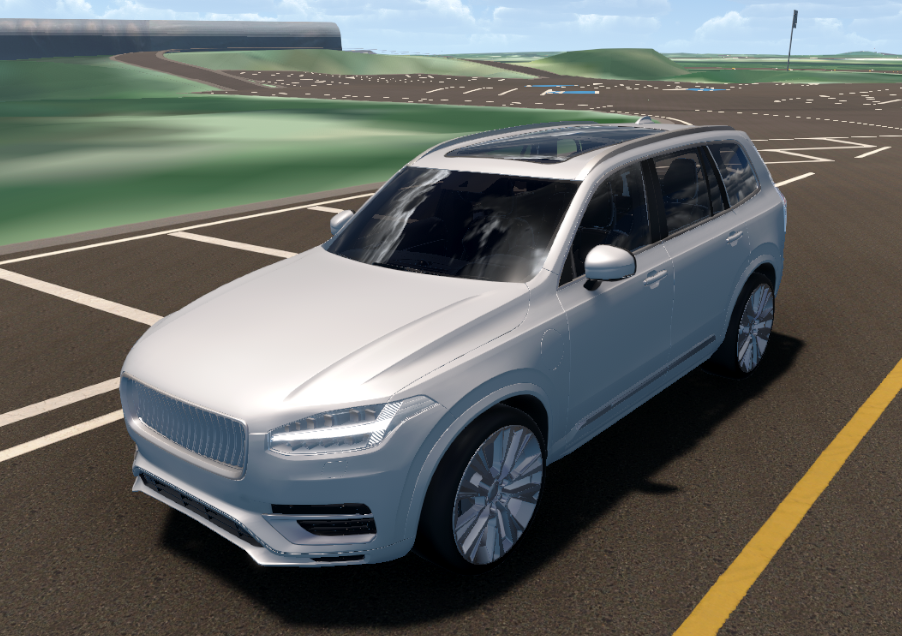

2020_volvo_xc90
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 10.58
Distance(m) : 197.07
Full Braking Test (100-0kph)
Time(sec) : 2.82
Distance(m) : 38.83
Steering
Minimum Turning Radius(m) : 5.92
Max Wheel Angle(deg) : 33.8
Exterior Dimensions
Length(m) : 4.953
Width(m) : 1.96
Height(m) : 1.776
Wheelbase(m) : 2.984
Front Overhang(m) : 0.89
Rear Overhang(m) : 1.079

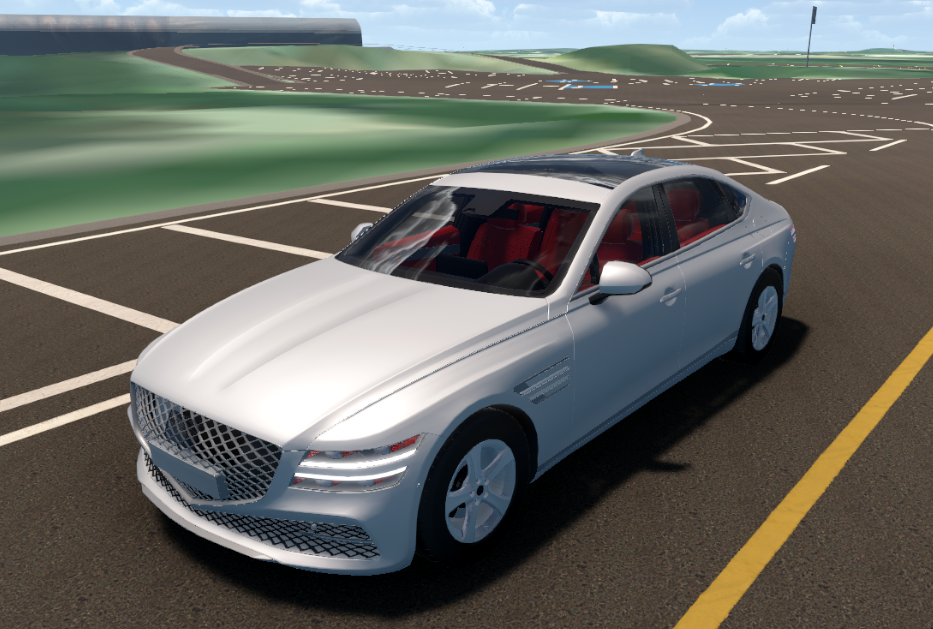

2021_Hyundai_G80
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 9.28
Distance(m) : 195.31
Full Braking Test (100-0kph)
Time(sec) : 3.08
Distance(m) : 43.61
Steering
Minimum Turning Radius(m) : 7.48
Max Wheel Angle(deg) : 32.1
Exterior Dimensions
Length(m) : 4.955
Width(m) : 1.925
Height(m) : 1.465
Wheelbase(m) : 3.01
Front Overhang(m) : 0.845
Rear Overhang(m) : 1.14
2021_Hyundai_GV70
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 10.72
Distance(m) : 197.52
Full Braking Test (100-0kph)
Time(sec) : 2.84
Distance(m) : 39.85
Steering
Minimum Turning Radius(m) : 5.49
Max Wheel Angle(deg) : 35.6
Exterior Dimensions
Length(m) : 4.667
Width(m) : 1.91
Height(m) : 1.63
Wheelbase(m) : 2.845
Front Overhang(m) : 0.822
Rear Overhang(m) : 1

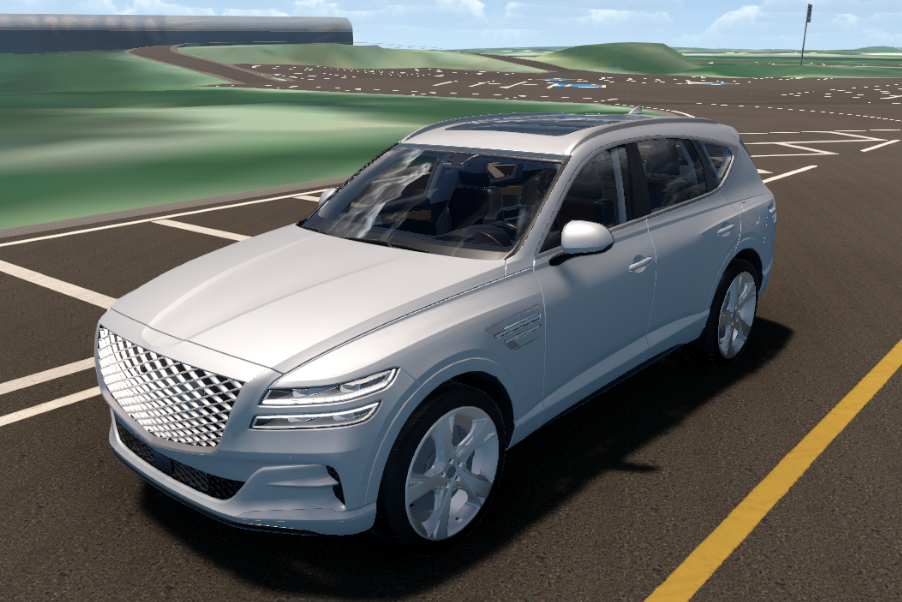

2021_Hyundai_Genesis_GV80
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 9.62
Distance(m) : 197.37
Full Braking Test (100-0kph)
Time(sec) : 3.14
Distance(m) : 43.2
Steering
Minimum Turning Radius(m) : 5.74
Max Wheel Angle(deg) : 35
Exterior Dimensions
Length(m) : 4.945
Width(m) : 1.975
Height(m) : 1.715
Wheelbase(m) : 2.955
Front Overhang(m) : 0.88
Rear Overhang(m) : 1.11

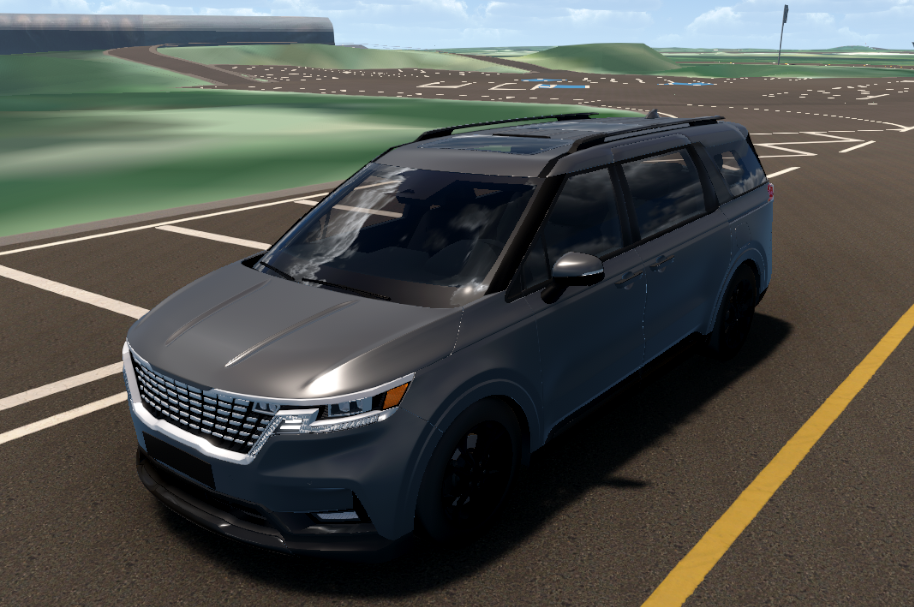

2021_Kia_Carnival
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 9.68
Distance(m) : 197.44
Full Braking Test (100-0kph)
Time(sec) : 2.92
Distance(m) : 40.87
Steering
Minimum Turning Radius(m) : 5.86
Max Wheel Angle(deg) : 36
Exterior Dimensions
Length(m) : 5.155
Width(m) : 1.995
Height(m) : 1.75
Wheelbase(m) : 3.09
Front Overhang(m) : 0.935
Rear Overhang(m) : 1.13

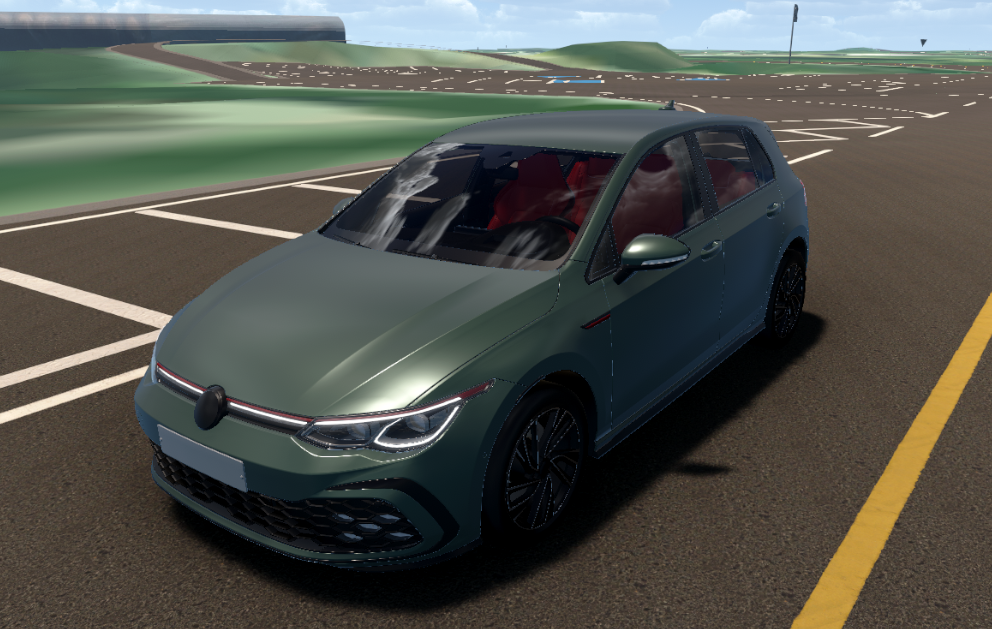

2021_Volkswagen_Golf_GTI
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 10.82
Distance(m) : 196.91
Full Braking Test (100-0kph)
Time(sec) : 2.9
Distance(m) : 40.43
Steering
Minimum Turning Radius(m) : 5.49
Max Wheel Angle(deg) : 32.4
Exterior Dimensions
Length(m) : 4.38
Width(m) : 1.78
Height(m) : 1.467
Wheelbase(m) : 2.631
Front Overhang(m) : 0.86
Rear Overhang(m) : 0.889

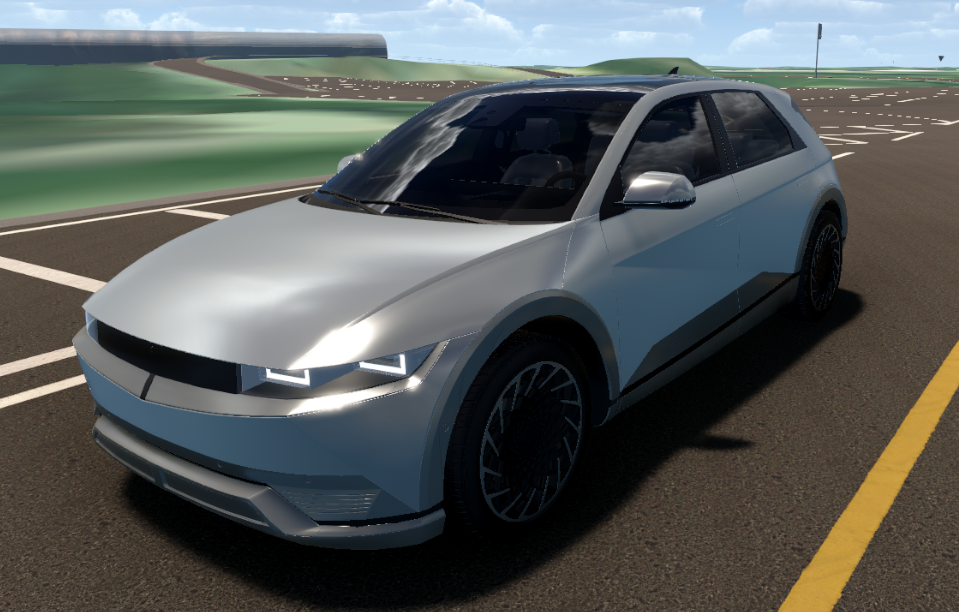

2023_Hyundai_Ioniq5
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 7.4
Distance(m) : 184.29
Full Braking Test (100-0kph)
Time(sec) : 3.08
Distance(m) : 43.73
Steering
Minimum Turning Radius(m) : 5.87
Max Wheel Angle(deg) : 40
Exterior Dimensions
Length(m) : 4.635
Width(m) : 1.892
Height(m) : 2.434
Wheelbase(m) : 3
Front Overhang(m) : 0.845
Rear Overhang(m) : 0.79

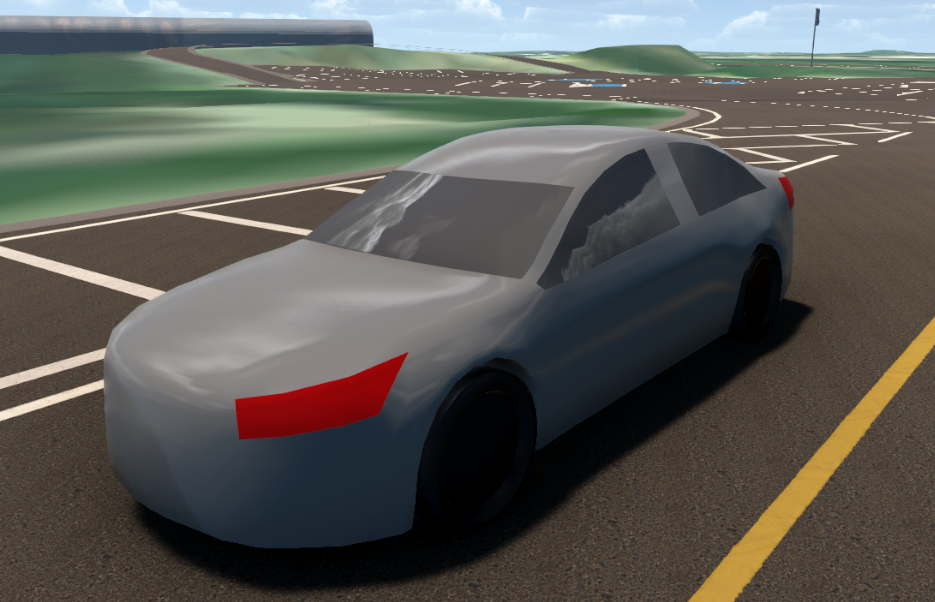

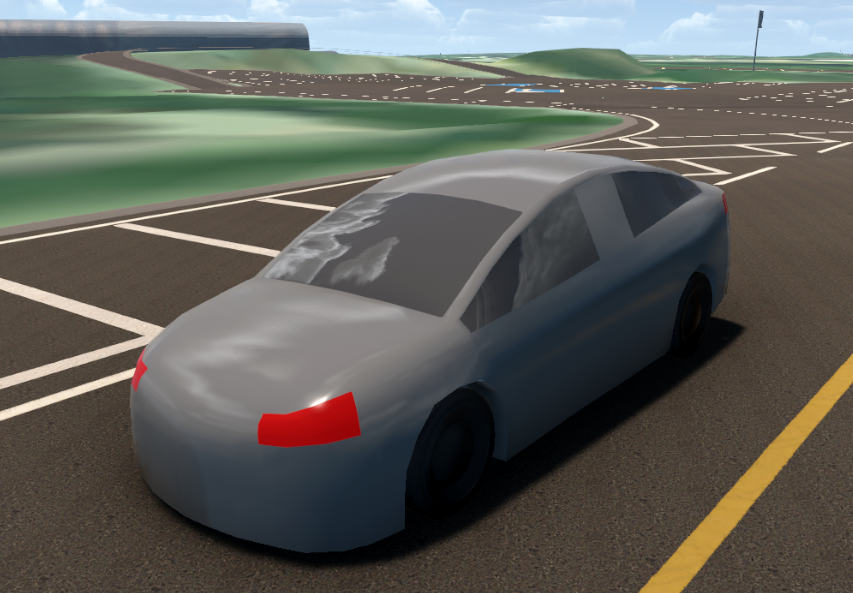

DEFAULT_SEDAN
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 9.38
Distance(m) : 198.01
Full Braking Test (100-0kph)
Time(sec) : 2.98
Distance(m) : 42.33
Steering
Minimum Turning Radius(m) : 6.53
Max Wheel Angle(deg) : 29
Exterior Dimensions
Length(m) : 4.95
Width(m) : 1.885
Height(m) : 1.5
Wheelbase(m) : 2.85
Front Overhang(m) : 0.98
Rear Overhang(m) : 1.12
DEFAULT_SUV
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 11.38
Distance(m) : 156.19
Full Braking Test (100-0kph)
Time(sec) : 3
Distance(m) : 41.56
Steering
Minimum Turning Radius(m) : 5.52
Max Wheel Angle(deg) : 33.4
Exterior Dimensions
Length(m) : 4.7
Width(m) : 1.88
Height(m) : 1.63
Wheelbase(m) : 2.7
Front Overhang(m) : 0.94
Rear Overhang(m) : 1.06
DEFAULT_BUS
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 19.6
Distance(m) : 147.87
Full Braking Test (100-0kph)
Time(sec) : 3.98
Distance(m) : 56.45
Steering
Minimum Turning Radius(m) : 9.52
Max Wheel Angle(deg) : 43.6
Exterior Dimensions
Length(m) : 12.03
Width(m) : 2.495
Height(m) : 3.49
Wheelbase(m) : 6.12
Front Overhang(m) : 2.67
Rear Overhang(m) : 3.24

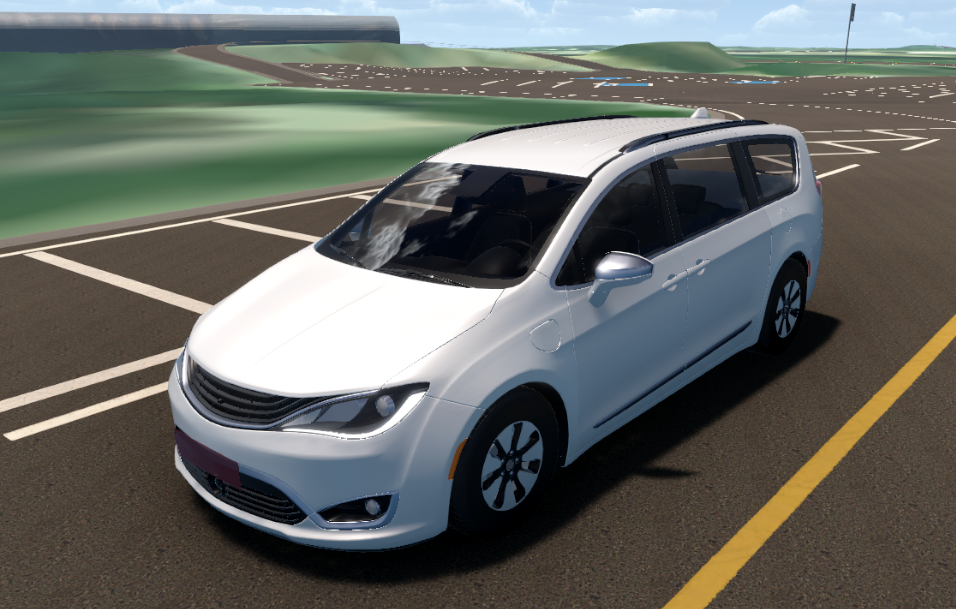

DEFAULT_MPV
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 10.86
Distance(m) : 197.44
Full Braking Test (100-0kph)
Time(sec) : 2.86
Distance(m) : 40.23
Steering
Minimum Turning Radius(m) : 6.04
Max Wheel Angle(deg) : 34.6
Exterior Dimensions
Length(m) : 5.155
Width(m) : 1.985
Height(m) : 1.74
Wheelbase(m) : 3.06
Front Overhang(m) : 0.955
Rear Overhang(m) : 1.1

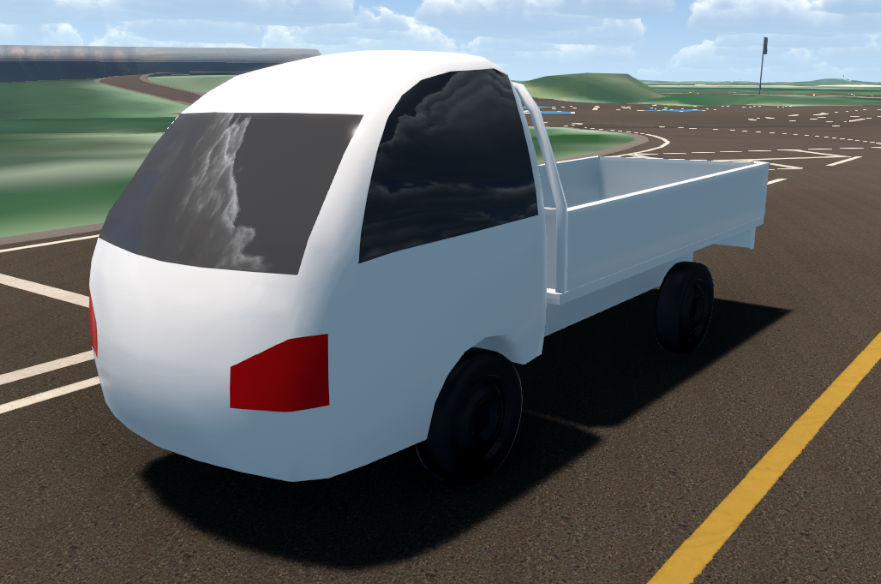

DEFAULT_TRUCK
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 12.28
Distance(m) : 147.87
Full Braking Test (100-0kph)
Time(sec) : 3.28
Distance(m) : 45.97
Steering
Minimum Turning Radius(m) : 5.41
Max Wheel Angle(deg) : 30
Exterior Dimensions
Length(m) : 4.955
Width(m) : 1.65
Height(m) : 1.965
Wheelbase(m) : 2.425
Front Overhang(m) : 1.205
Rear Overhang(m) : 1.325
DEFAULT_WAGON
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 11.44
Distance(m) : 196.91
Full Braking Test (100-0kph)
Time(sec) : 2.84
Distance(m) : 39.04
Steering
Minimum Turning Radius(m) : 5.32
Max Wheel Angle(deg) : 34.6
Exterior Dimensions
Length(m) : 4.645
Width(m) : 1.775
Height(m) : 1.6
Wheelbase(m) : 2.78
Front Overhang(m) : 0.945
Rear Overhang(m) : 0.919
Surround-Vehicle Specifications

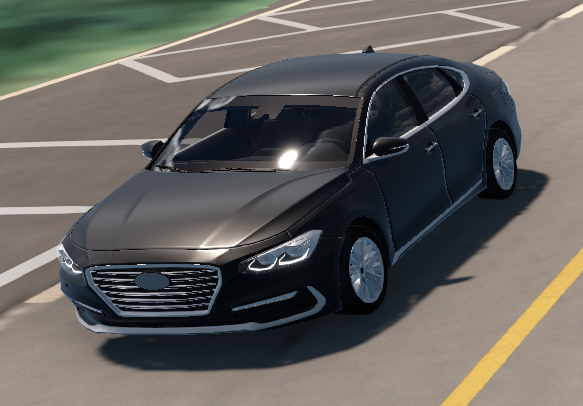

2017_Hyundai_Grandeur
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 9.66
Distance(m) : 198.05
Full Braking Test (100-0kph)
Time(sec) : 2.42
Distance(m) : 33.6
Steering
Minimum Turning Radius(m) : 6.05
Max Wheel Angle(deg) : 32.5
Exterior Dimensions
Length(m) : 5.01
Width(m) : 1.885
Height(m) : 1.5
Wheelbase(m) : 2.9
Front Overhang(m) : 1
Rear Overhang(m) : 1.12

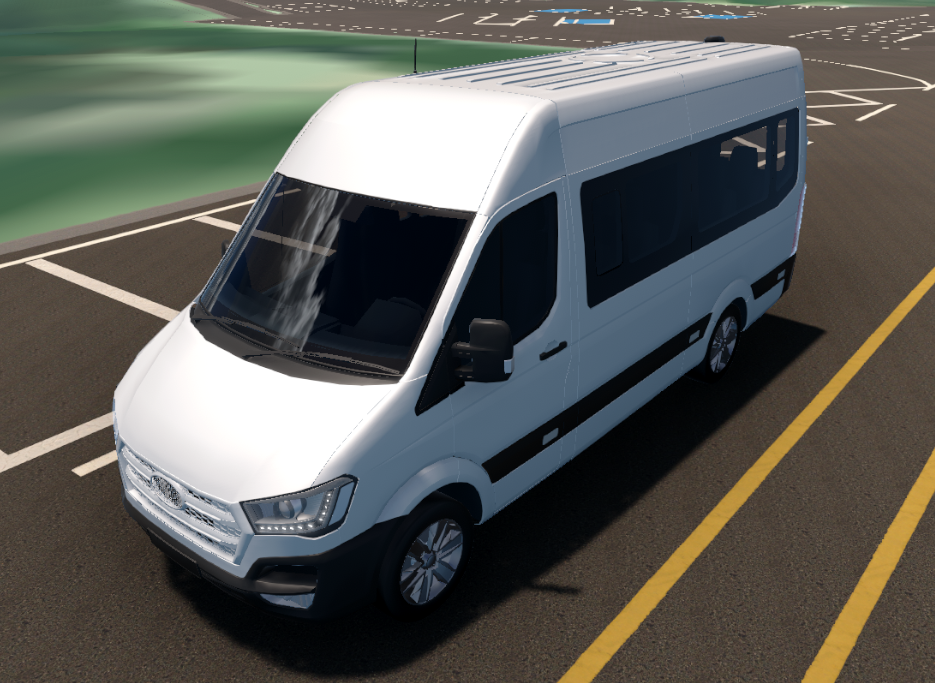

2017_hyundai_solati_h350
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 15.24
Distance(m) : 155.25
Full Braking Test (100-0kph)
Time(sec) : 3.48
Distance(m) : 49.63
Steering
Minimum Turning Radius(m) : 6.9
Max Wheel Angle(deg) : 49
Exterior Dimensions
Length(m) : 6.195
Width(m) : 2.436
Height(m) : 2.665
Wheelbase(m) : 3.67
Front Overhang(m) : 0.99
Rear Overhang(m) : 1.535

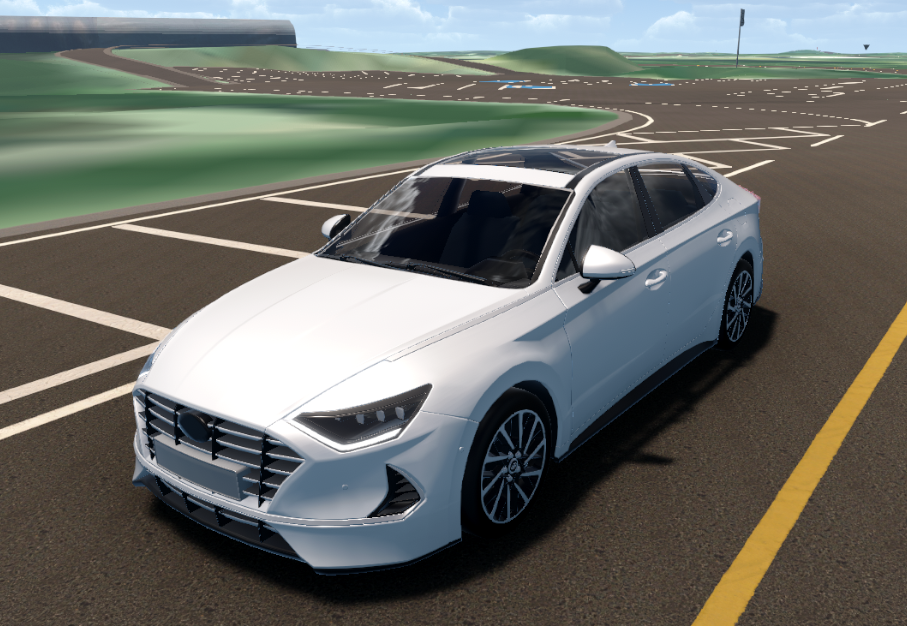

2020_hyundai_sonata
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 10.26
Distance(m) : 197.65
Full Braking Test (100-0kph)
Time(sec) : 3.41
Distance(m) : 48.96
Steering
Minimum Turning Radius(m) : 5.87
Max Wheel Angle(deg) : 35
Exterior Dimensions
Length(m) : 4.9
Width(m) : 4.86
Height(m) : 1.445
Wheelbase(m) : 2.84
Front Overhang(m) : 0.95
Rear Overhang(m) : 1.109

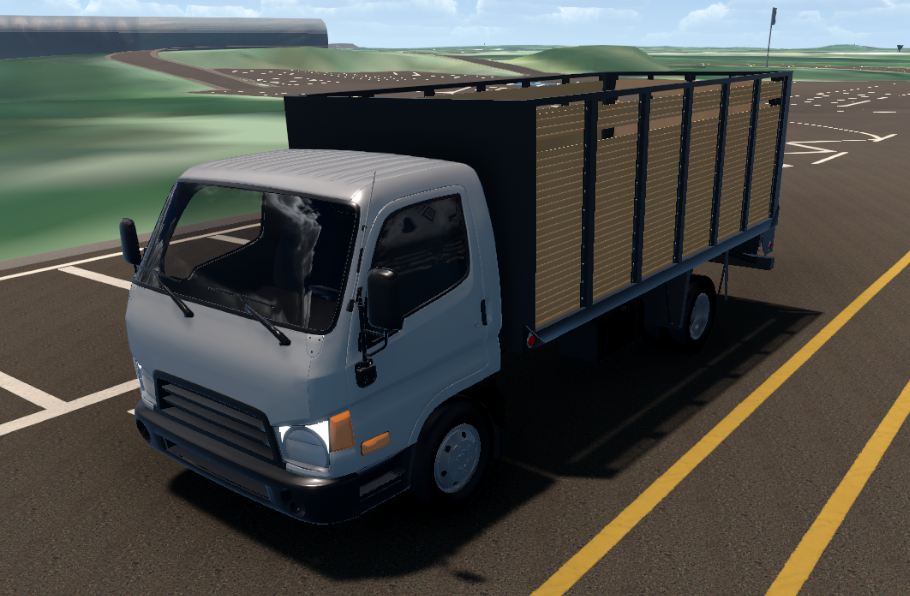

2012_Hyundai_HD65
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 18.52
Distance(m) : 147.86
Full Braking Test (100-0kph)
Time(sec) : 3.44
Distance(m) : 49.39
Steering
Minimum Turning Radius(m) : 8.68
Max Wheel Angle(deg) : 30.95
Exterior Dimensions
Length(m) : 6.44
Width(m) : 2.45
Height(m) : 2.47
Wheelbase(m) : 3.55
Front Overhang(m) : 1.11
Rear Overhang(m) : 1.78
2013_Hyundai_Porter2
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 11.38
Distance(m) : 123.84
Full Braking Test (100-0kph)
Time(sec) : 3.42
Distance(m) : 48.97
Steering
Minimum Turning Radius(m) : 7.04
Max Wheel Angle(deg) : 33
Exterior Dimensions
Length(m) : 5.017
Width(m) : 1.7
Height(m) : 1.97
Wheelbase(m) : 2.417
Front Overhang(m) : 1.24
Rear Overhang(m) : 1.36

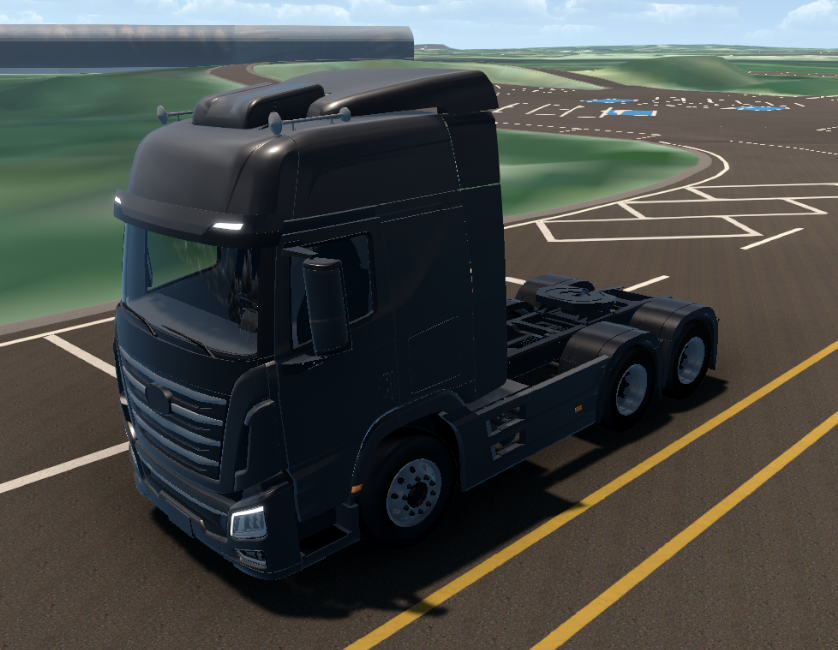

2013_Hyundai_Xcient(P520)
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 18.12
Distance(m) : 147.19
Full Braking Test (100-0kph)
Time(sec) : 4.86
Distance(m) : 70.23
Steering
Minimum Turning Radius(m) : 8.05
Max Wheel Angle(deg) : 35.23
Exterior Dimensions
Length(m) : 6.965
Width(m) : 2.6
Height(m) : 3.95
Wheelbase(m) : 4.57
Front Overhang(m) : 1.575
Rear Overhang(m) : 0.82
2013_Hyundai_Xcient(P540)
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 21.8
Distance(m) : 148.32
Full Braking Test (100-0kph)
Time(sec) : 3.64
Distance(m) : 52.4
Steering
Minimum Turning Radius(m) : 9.3
Max Wheel Angle(deg) : 39.43
Exterior Dimensions
Length(m) : 8.83
Width(m) : 2.6
Height(m) : 3.48
Wheelbase(m) : 6.02
Front Overhang(m) : 1.66
Rear Overhang(m) : 1.15
2014_Hyundai_Xcient(Mixer)
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 21.32
Distance(m) : 148.32
Full Braking Test (100-0kph)
Time(sec) : 4.32
Distance(m) : 62.69
Steering
Minimum Turning Radius(m) : 9.78
Max Wheel Angle(deg) : 41.64
Exterior Dimensions
Length(m) : 10.165
Width(m) : 2.6
Height(m) : 3.79
Wheelbase(m) : 6.465
Front Overhang(m) : 1.6
Rear Overhang(m) : 2.1

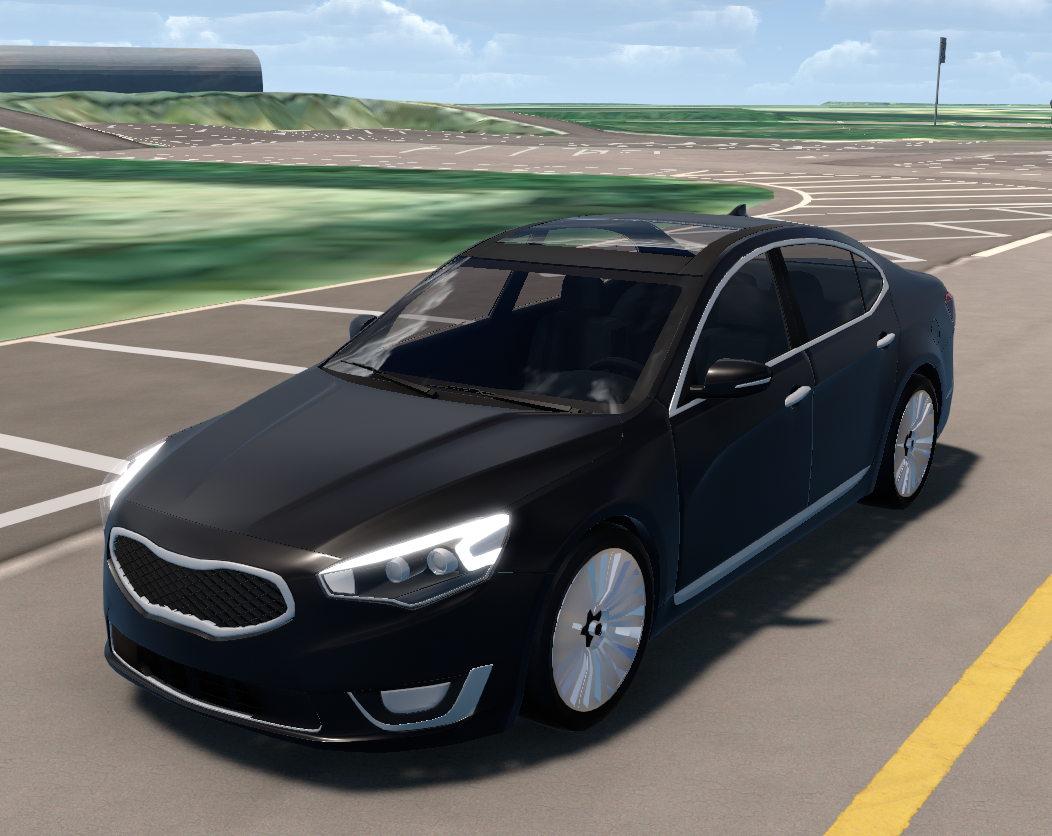

2014_Kia_K7
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 9.56
Distance(m) : 198.06
Full Braking Test (100-0kph)
Time(sec) : 2.8
Distance(m) : 40.49
Steering
Minimum Turning Radius(m) : 5.93
Max Wheel Angle(deg) : 32.5
Exterior Dimensions
Length(m) : 5.01
Width(m) : 1.885
Height(m) : 1.5
Wheelbase(m) : 2.9
Front Overhang(m) : 1.0
Rear Overhang(m) : 1.12

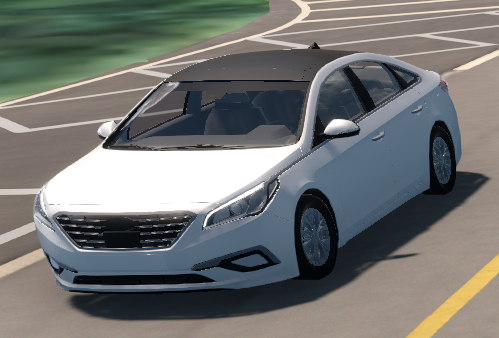

2016_Hyundai_Sonata
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 9.52
Distance(m) : 198.06
Full Braking Test (100-0kph)
Time(sec) : 2.32
Distance(m) : 32.8
Steering
Minimum Turning Radius(m) : 6.03
Max Wheel Angle(deg) : 31.3
Exterior Dimensions
Length(m) : 4.855
Width(m) : 1.865
Height(m) : 1.475
Wheelbase(m) : 2.805
Front Overhang(m) : 0.965
Rear Overhang(m) : 1.085

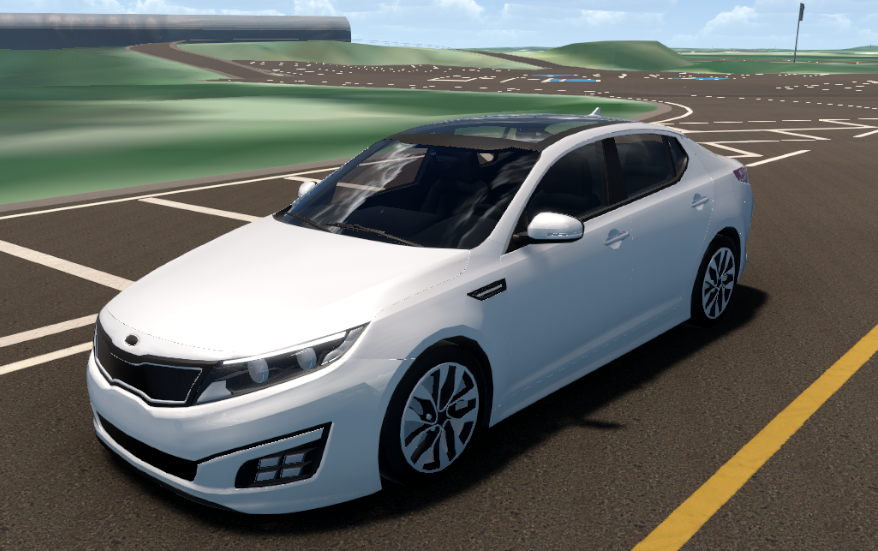

2015_Kia_K5
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 9.3
Distance(m) : 198.07
Full Braking Test (100-0kph)
Time(sec) : 2.68
Distance(m) : 36.89
Steering
Minimum Turning Radius(m) : 6.06
Max Wheel Angle(deg) : 31.15
Exterior Dimensions
Length(m) : 4.845
Width(m) : 1.835
Height(m) : 1.455
Wheelbase(m) : 2.795
Front Overhang(m) : 0.965
Rear Overhang(m) : 1.085

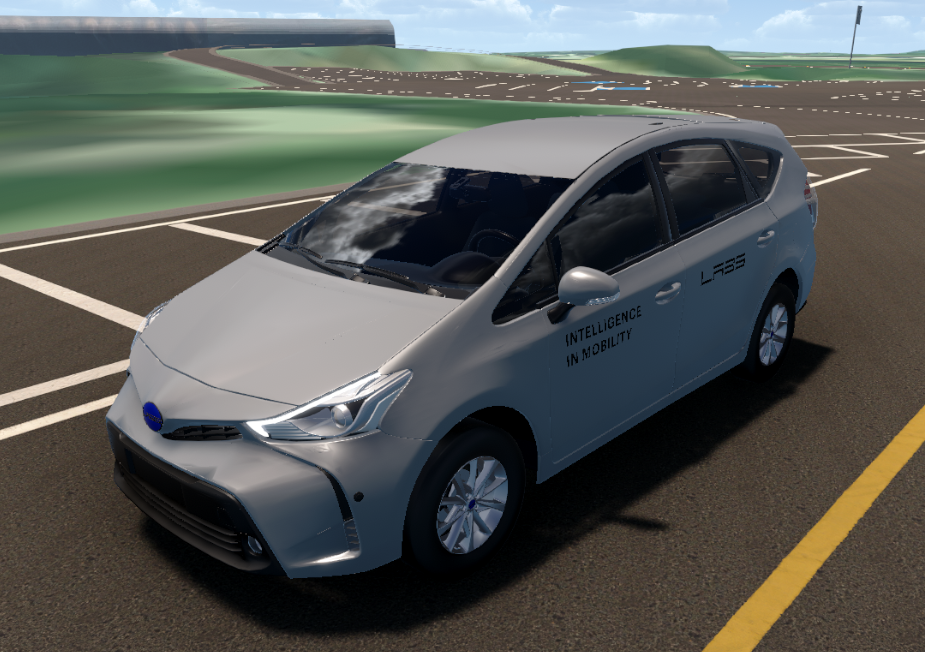

2015_Toyota_Prius(HEV)
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 11.16
Distance(m) : 197.47
Full Braking Test (100-0kph)
Time(sec) : 2.86
Distance(m) : 39.18
Steering
Minimum Turning Radius(m) : 5.48
Max Wheel Angle(deg) : 34.47
Exterior Dimensions
Length(m) : 4.645
Width(m) : 1.775
Height(m) : 1.6
Wheelbase(m) : 2.78
Front Overhang(m) : 0.945
Rear Overhang(m) : 0.919

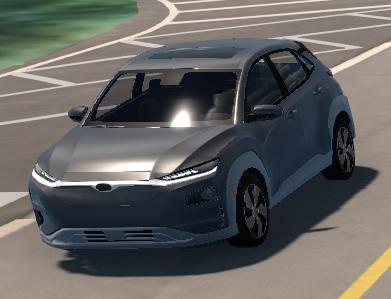

2019_Hyundai_Kona(EV)
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 9.62
Distance(m) : 199.06
Full Braking Test (100-0kph)
Time(sec) : 3.18
Distance(m) : 47.18
Steering
Minimum Turning Radius(m) : 5.43
Max Wheel Angle(deg) : 32.21
Exterior Dimensions
Length(m) : 4.26
Width(m) : 1.785
Height(m) : 1.53
Wheelbase(m) : 2.612
Front Overhang(m) : 0.888
Rear Overhang(m) : 0.76

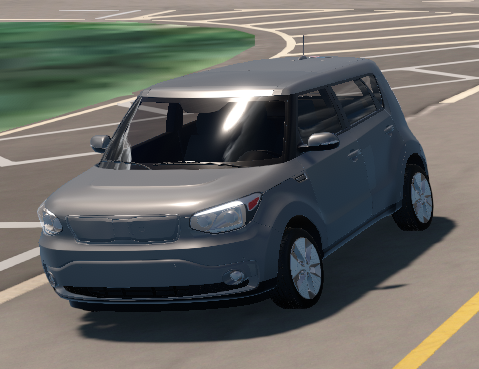

2016_Kia_Soul(EV)
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 9.18
Distance(m) : 199.08
Full Braking Test (100-0kph)
Time(sec) : 3.12
Distance(m) : 46.42
Steering
Minimum Turning Radius(m) : 5.49
Max Wheel Angle(deg) : 31.57
Exterior Dimensions
Length(m) : 4.09
Width(m) : 1.785
Height(m) : 1.595
Wheelbase(m) : 2.567
Front Overhang(m) : 0.822
Rear Overhang(m) : 0.107

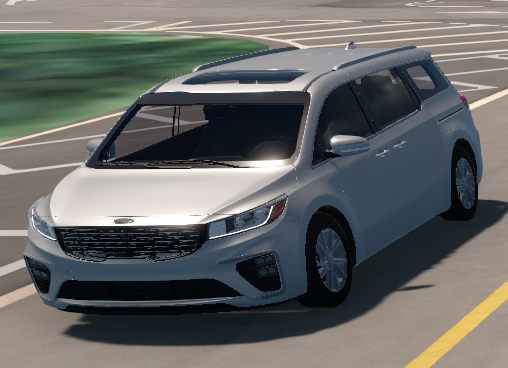

2019_kia_sedona
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 12.1
Distance(m) : 197.23
Full Braking Test (100-0kph)
Time(sec) : 2.84
Distance(m) : 39.65
Steering
Minimum Turning Radius(m) : 6.05
Max Wheel Angle(deg) : 34.52
Exterior Dimensions
Length(m) : 5.115
Width(m) : 2.02
Height(m) : 1.662
Wheelbase(m) : 3.06
Front Overhang(m) : 0.955
Rear Overhang(m) : 1.1
2020_chrysler_pacifica_hybrid
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 12.22
Distance(m) : 156.08
Full Braking Test (100-0kph)
Time(sec) : 2.68
Distance(m) : 37.44
Steering
Minimum Turning Radius(m) : 6.03
Max Wheel Angle(deg) : 34.94
Exterior Dimensions
Length(m) : 5.173
Width(m) : 2.0
Height(m) : 1.71
Wheelbase(m) : 3.089
Front Overhang(m) : 0.96
Rear Overhang(m) : 1.124

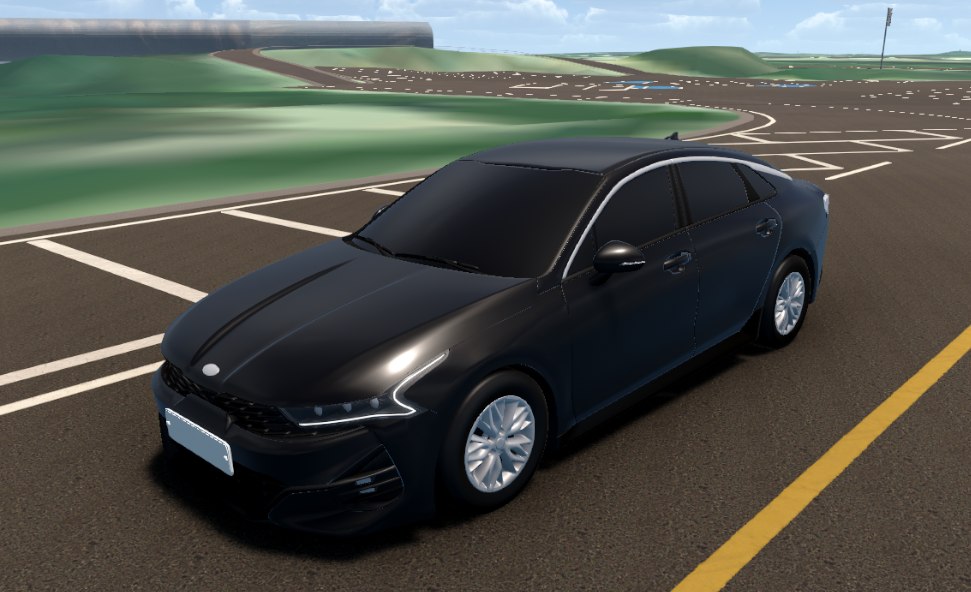

2020_Kia_K5
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 9.52
Distance(m) : 198.06
Full Braking Test (100-0kph)
Time(sec) : 2.9
Distance(m) : 41.76
Steering
Minimum Turning Radius(m) : 6.04
Max Wheel Angle(deg) : 31.9
Exterior Dimensions
Length(m) : 4.905
Width(m) : 1.86
Height(m) : 1.445
Wheelbase(m) : 2.85
Front Overhang(m) : 0.947015
Rear Overhang(m) : 1.10799
2020_Kia_Niro(EV)
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 8.04
Distance(m) : 166.69
Full Braking Test (100-0kph)
Time(sec) : 3.08
Distance(m) : 44.32
Steering
Minimum Turning Radius(m) : 5.5
Max Wheel Angle(deg) : 33.4
Exterior Dimensions
Length(m) : 4.375
Width(m) : 1.805
Height(m) : 1.56
Wheelbase(m) : 2.7
Front Overhang(m) : 0.785
Rear Overhang(m) : 0.87

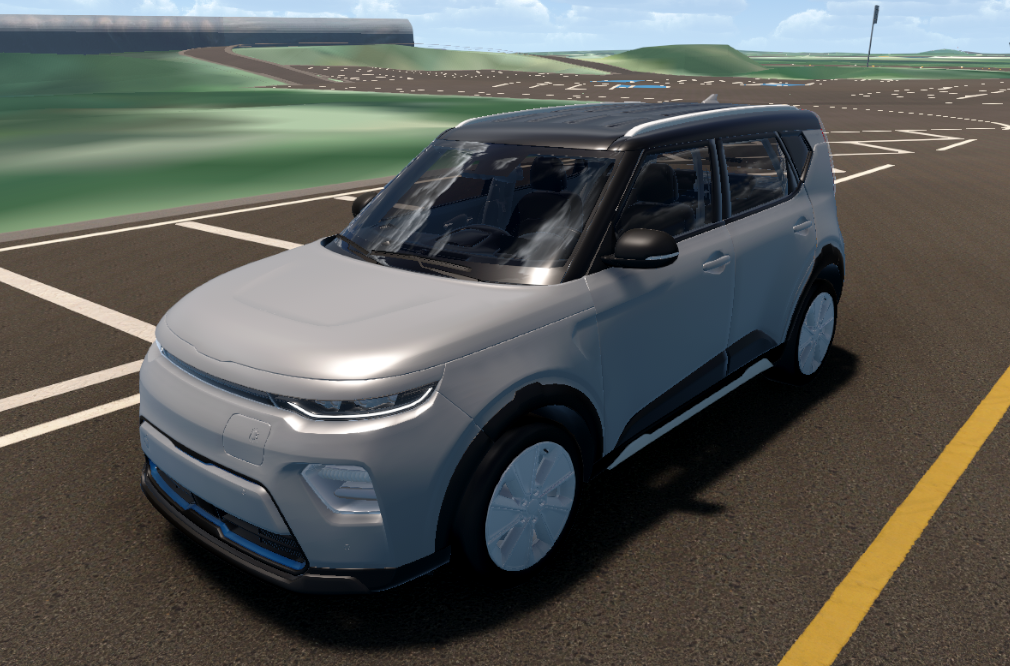

2020_Kia_Soul(EV)
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 9.58
Distance(m) : 199.06
Full Braking Test (100-0kph)
Time(sec) : 3.16
Distance(m) : 47.52
Steering
Minimum Turning Radius(m) : 5.43
Max Wheel Angle(deg) : 32.08
Exterior Dimensions
Length(m) : 4.195
Width(m) : 1.8
Height(m) : 1.605
Wheelbase(m) : 2.6
Front Overhang(m) : 0.73
Rear Overhang(m) : 0.865

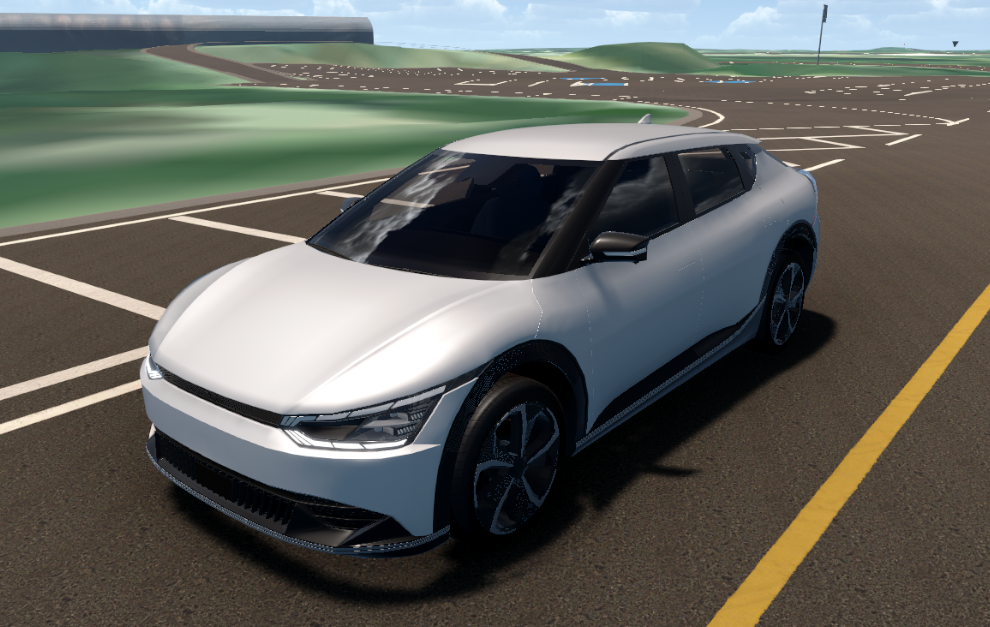

2023_Kia_ev6
Vehicle Image
Performance (Longitudinal)
Full Acceleration Test (0-100kph)
Time(sec) : 11.4
Distance(m) : 199.02
Full Braking Test (100-0kph)
Time(sec) : 3.1
Distance(m) : 44.08
Steering
Minimum Turning Radius(m) : 5.99
Max Wheel Angle(deg) : 32.5
Exterior Dimensions
Length(m) : 4.71
Width(m) : 1.9
Height(m) : 1.565
Wheelbase(m) : 2.9
Front Overhang(m) : 0.86
Rear Overhang(m) : 0.95
