rosbag Replay

This section describes rosbag Replay, a feature that allows users to review data recorded on ROS networks using rosbag files.

MORAI Simulator Rosbag Replay

The rosbag Replay feature allows for replaying scenarios using rosbag.
Users can save the driving data of the Ego-vehicle and surrounding environmental data as a rosbag for a desired scenario, and then replay the scenario.
Additionally, you can spawn sensors to the Ego-vehicle to generate a dataset.

Replay Mode

Rosbag Replay: This feature allows for directly importing a rosbag file into the simulator for replay.
Network Replay: This feature involves playing a rosbag file within the ROS environment. It retrieves the /ReplayInfo_topic stored in the rosbag through Rosbridge for replay.

Rosbag Replay

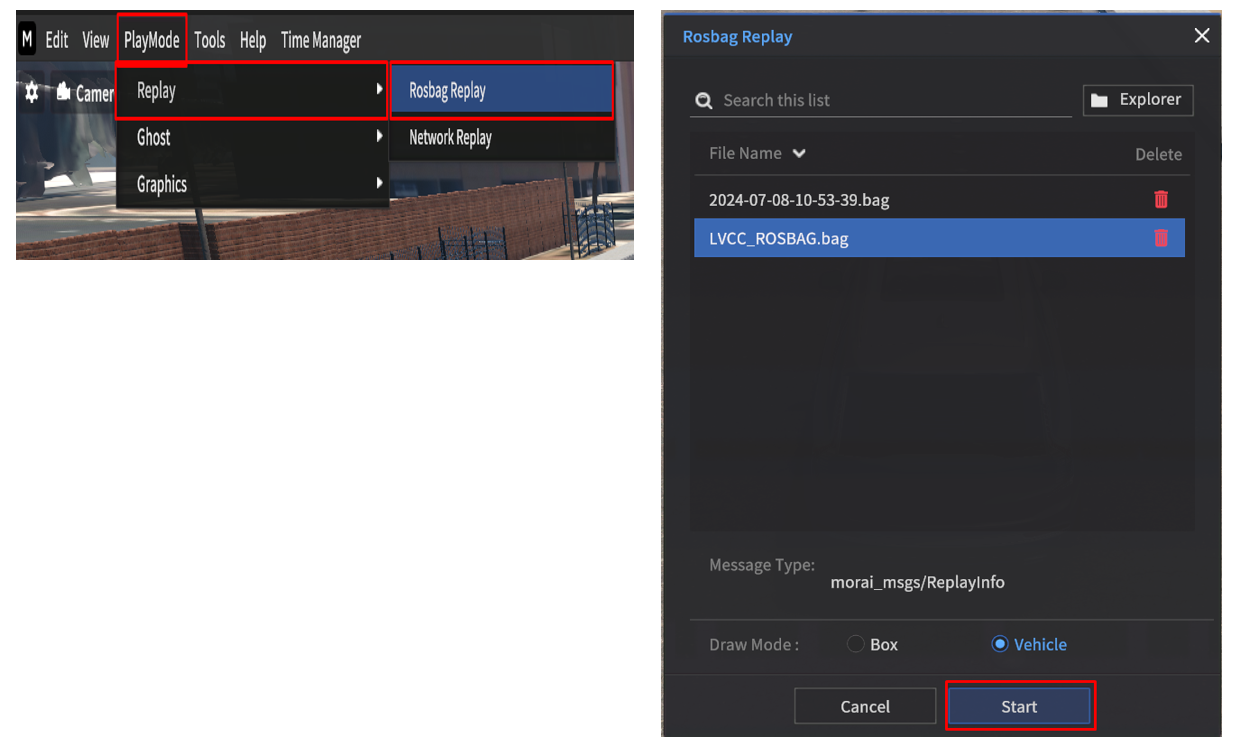

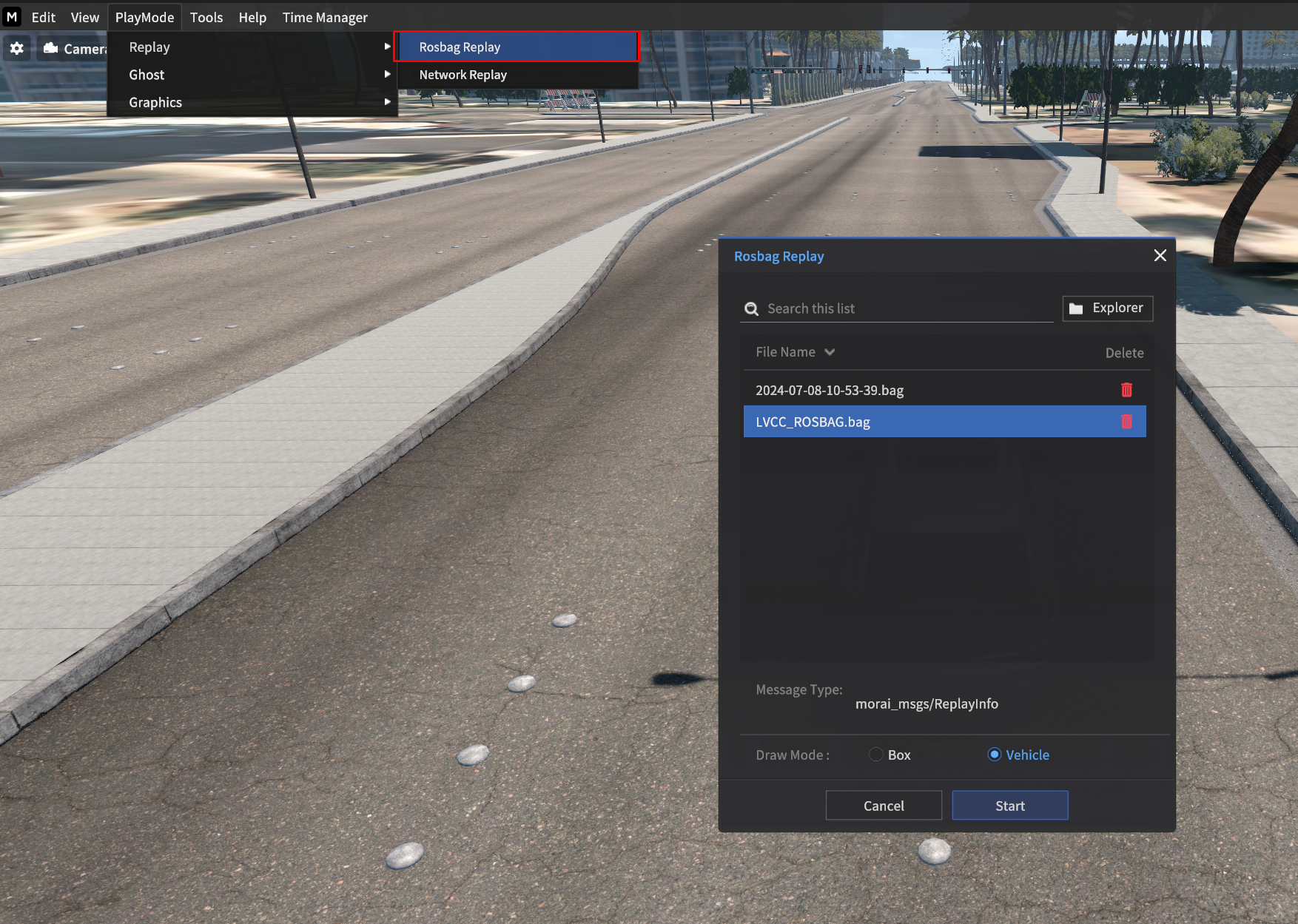

To enable the Rosbag Replay, go to PlayMode > Replay > Rosbag Replay.

Double-click the desired rosbag file from the top File List.
Once loading is complete, the information about the rosbag file will be displayed in the Message Type section.
After that, click Start to open the Replayer Control Panel.
Press the Play button in the Replayer Control Panel to run the replay function.

Option

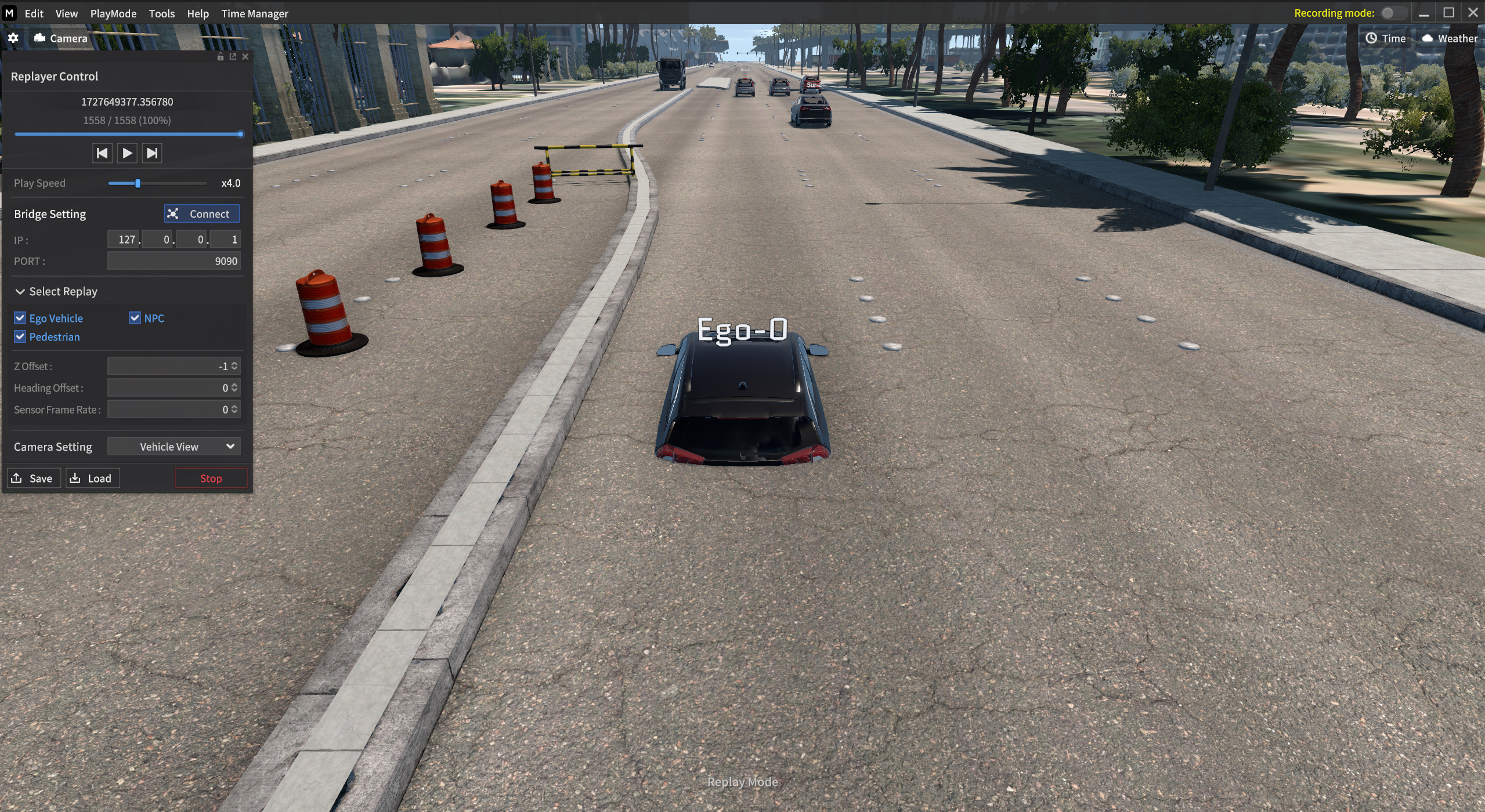

Replayer Control Panel

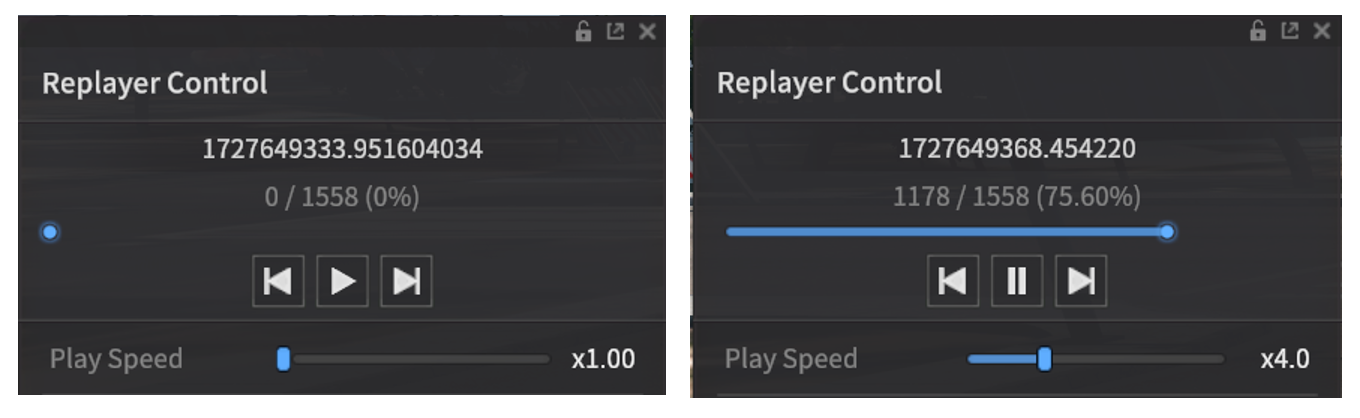

- rosbag File Playback Control:
  - Use the arrow buttons (rewind & fast forward) to adjust the playback.
  - Adjust the playback point of the rosbag file using the top playback bar.
  - Control the playback speed of the rosbag file with the bottom playback bar.
  - The numbers displayed above the playback button: It indicates the UNIX timestamp of the rosbag file and the number of messages stored.

Save the current scenario state

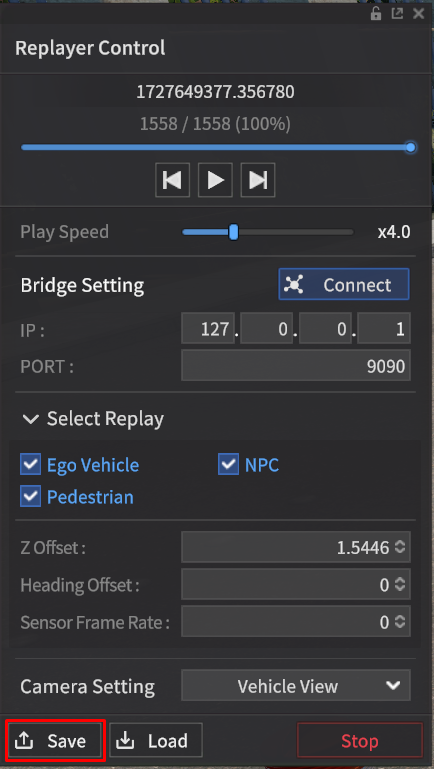

- When you click the Save button at the bottom of the Replayer Control Panel, you can save the currently playing scenario state.
- To confirm the saved scenario, go to Scenario > Save & Load.

Bridge Setting
- You can confirm the currently playing rosbag data published in the ROS environment.
- The published data information is as follows:
  - Message Type : morai_msgs/ReplayInfo
  - Default Topic : /ReplayInfo_topic
Select Replay / Offset / Sensor Frame Rate
- Select Replay : Determines whether to replay information for Ego-vehicles, NPC vehicles, and Pedestrians when playing the rosbag file.
- Heading Offset : Adjusts the heading direction offset of the Ego-vehicle.
- Sensor Frame Rate : The Sensor Data Storage rate (Hz) spawned to the vehicle during the rosbag replay.
- Height Offset : Adjusts the Z-direction position offset of the Ego-vehicle.
  - If the vehicle appears to be buried in the ground during the rosbag replay, the Height Offset function can be used to adjust the position of the Ego-vehicle.
Camera Setting
- Perspective View : A camera view that allows free movement and positioning.
- Top View : A camera view that looks down from above.
- Vehicle View : The camera view displayed as seen from the current position and rotation of the vehicle.
- Vehicle View: A camera view centered around the current vehicle.
Rosbag Replay Control using ROS Message
- The replay function can be activated and terminated by publishing ROS messages.
- Users can control options for the replay function, including playback speed and viewpoint settings.
  - For more detailed control, please refer to the below page.
  - Communication Protocols

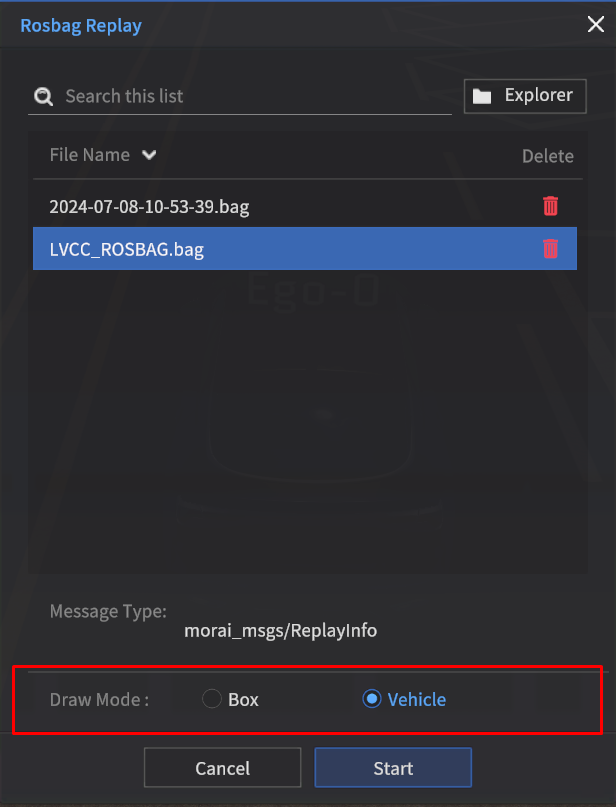

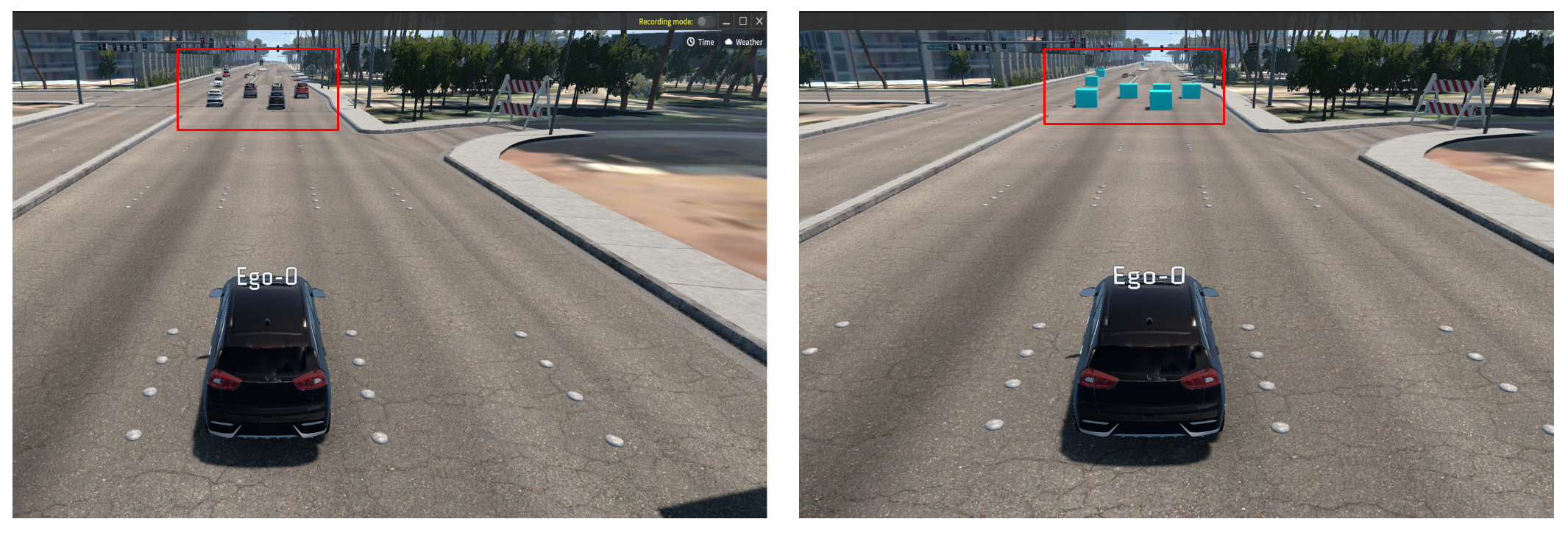

Rosbag Replay - Select Mode Option
- Vehicle : Sur-vehicles (NPC Vehicles) are displayed as they are on the road.
- Box : Sur-vehicles (NPC Vehicles) are displayed as a box shape on the road.

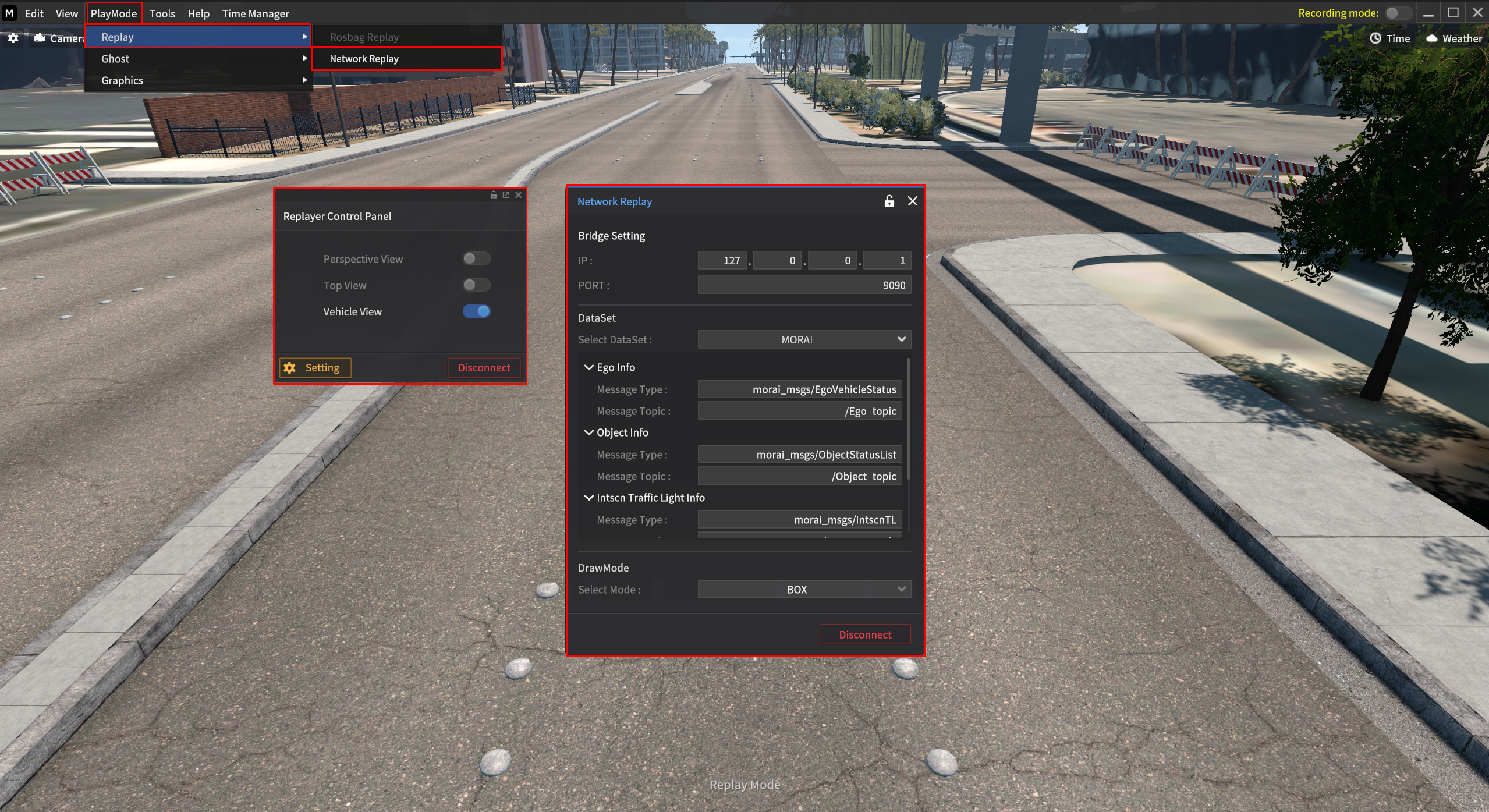

Network Replay

Play the rosbag file in the ROS environment and replay the data by subscribing via rosbridge.
- In the Bridge Settings, enter the IP and PORT of the rosbridge in the ROS environment where the rosbag file is being played.

Click Connect and you will find the Replayer Control Panel in the upper left corner.
Check and select the Dataset and Draw Mode.
Play the rosbag file in the ROS environment and confirm it runs well.

Option

Replayer Control Panel
- After connecting, you can adjust the viewpoint of the rosbag playback simulation via Replayer Control Panel.
  - Perspective View : A camera view that allows free movement and positioning.
  - Top View : A camera view that looks down from above.
  - Vehicle View : A camera view centered around the current vehicle.
- When the Replayer Control Panel appears, the replay proceeds in accordance with the rosbag file being published from Ubuntu.
ROS Environment Setting
- Run rosbridge
  - $ roslaunch rosbridge_server rosbridge_websocket.launch
- Play rosbag file
  - Navigate to the directory where the rosbag file is saved in the terminal.

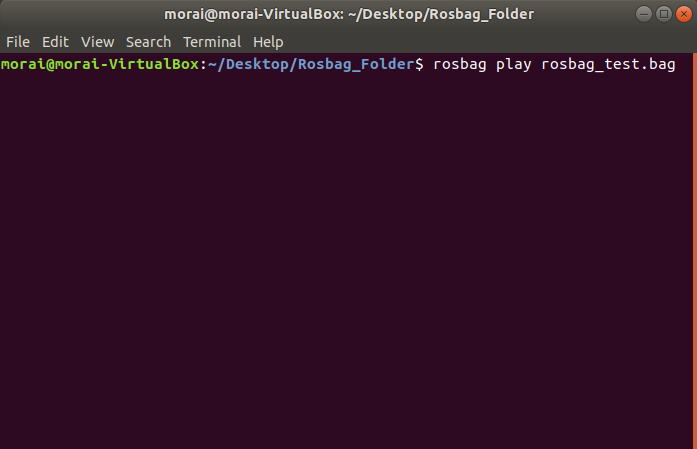

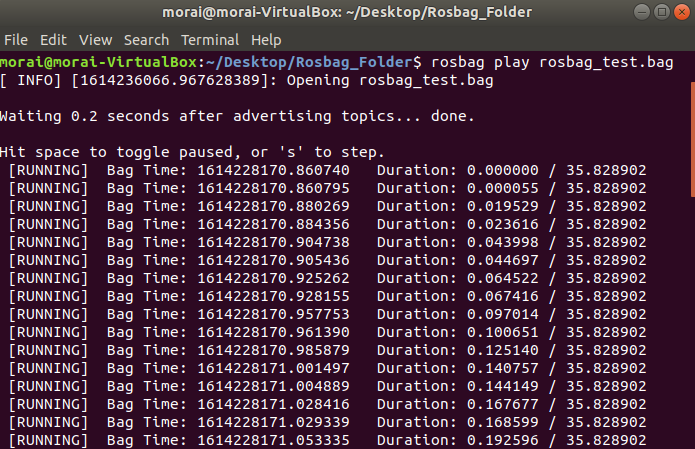

  - $ rosbag play <replace with your rosbag file name.bag>

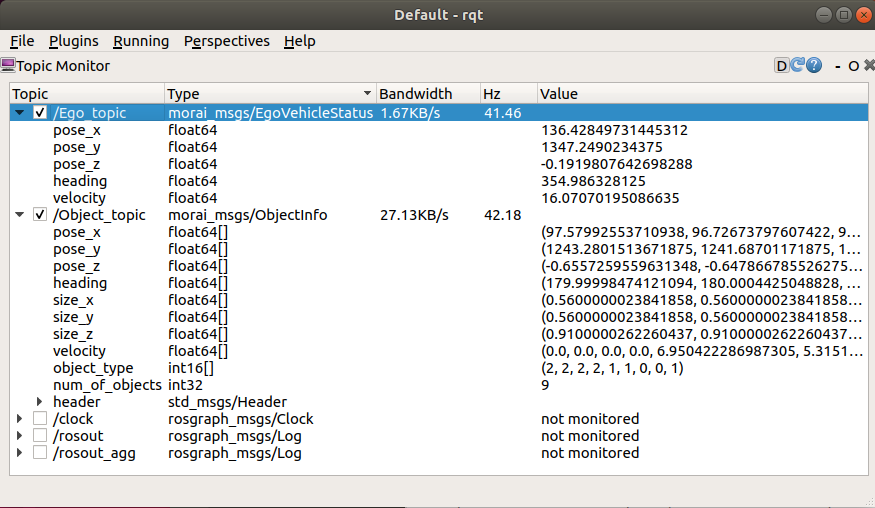

  - Using rqt, you can confirm the published data after proceeding with the rosbag Replay.

Create rosbag file

In the Ubuntu environment, you can save rostopic data to create a rosbag file in .bag format.
Connect rosbridge in Ubuntu after running the simulator.
Confirm rostopic.

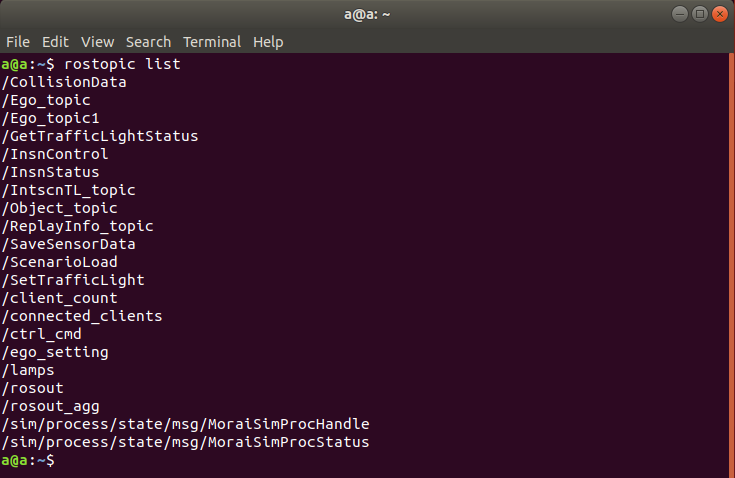

- $ rostopic list
- You can check out the current ROS Topic list connected.
Create rosbag file
- $ rosbag record /ReplayInfo_topic

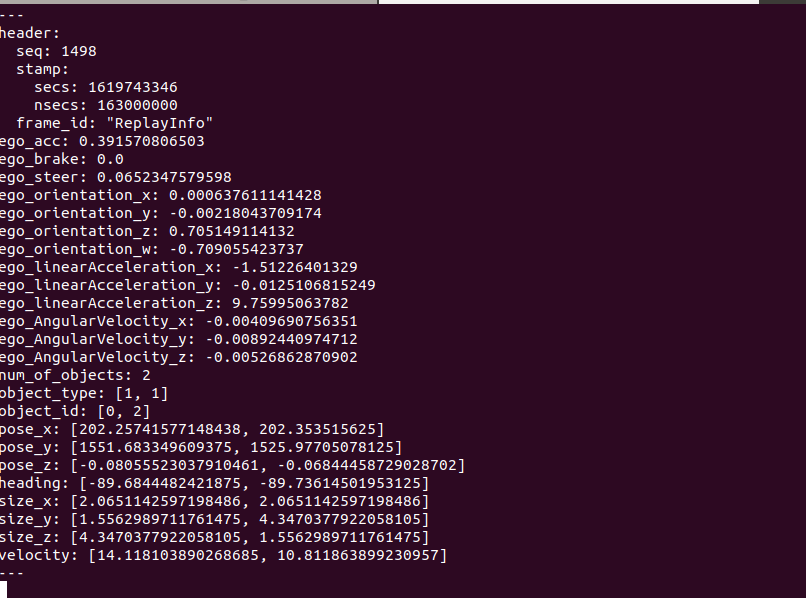

  - Below data are included in ReplayInfo_topic.
    - Ego information
      - ego_acc
      - ego_brake
      - ego_steer
      - ego_orientation_x
      - ego_orientation_y
      - ego_orientation_z
      - ego_orientation_w
      - ego_linearAcceleration_x
      - ego_linearAcceleration_y
      - ego_linearAcceleration_z
    - Object (NPC Vehicle, Pedestrian, Obstacle) information
      - num_of_object
      - object_type
      - object_id
      - pose_x :
      - pose_y
      - pose_z
      - heading
      - size_x
      - size_y
      - size_z
      - velocity
  - For more information about ROS message, please refer to this page : Communication Protocols

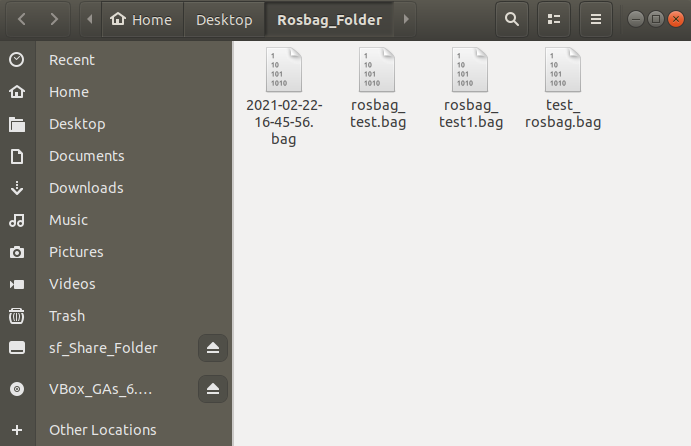

- When you run rosbag record, a file in .bag format is saved in the current terminal directory.

Save rosbag file

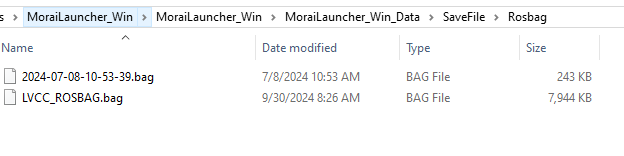

Move the created rosbag file to the Data\SaveFile\Rosbag folder within the Launcher directory.

Go to Replay Mode > Rosbag Replay.

After that, Click Start at the bottom, and a folder containing the saved rosbag files appear.

rosbag Replay Example

rosbag Replay Example Bag file

Download the below rosbag Example Bag file link.
LVCC_ROSBAG.bag
- You can save the downloaded rosbag file and play it as shown in the video below.

Rosbag Replay Video Tutorial

Replay Feature using rosbag File

Network Replay Example (video tutorial)
